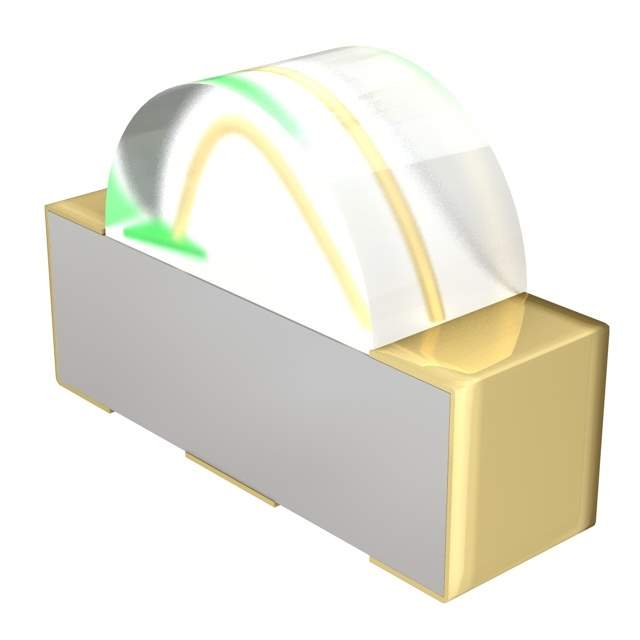

PT12-21C/TR8 Everlight Electronics Co Ltd PT12-21C/TR8 Real Image
PT12-21C/TR8 Everlight Electronics Co Ltd PT12-21C/TR8 Real Image
Same model may have multiple batches, images only for reference.

PT12-21C/TR8

Part No PT12-21C/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description Phototransistor IR Chip Silicon 940nm 2-Pin SMD T/R / PHOTOTRANSISTOR WATER CLR RA SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 50mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Maximum Power Dissipation 75mW
Mounting Surface Mount, Right Angle
Orientation Side View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension 2-SMD, No Lead
Win Source Part Number 099786-PT12-21C/TR8
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PT12-21C
Introduction Date July 28, 2005
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PT12-21C/TR8 CAD Model

Description

The Everlight Electronics Co Ltd PT12-21C infrared sensor is a high-quality optoelectronic component that is perfect for various electronic devices.

  • Orientation: Side-view
  • Mounting: Surface mount, right-angle mounting
  • Wavelength: 940nm
  • Current - Dark (Id) (Max): 100nA
  • Temperature Range: -25°C to 85°C (TA)
  • Dimension: 2-SMD, no lead
  • Maximum Current Collector: 50mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 75mW
  • Introduction Date: July 28, 2005
  • Supply and Demand Status: Balanced
