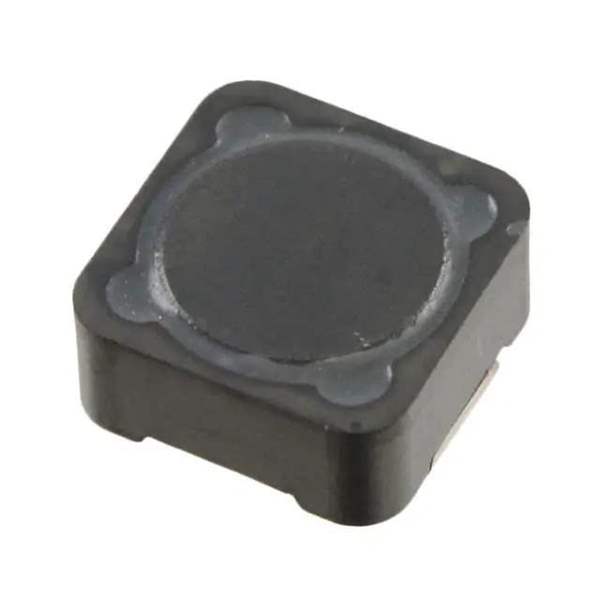

DR125-680-R Real Image
Same model may have multiple batches, images only for reference.

DR125-680-R

Part No DR125-680-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 68UH 2.22A 101MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series DR
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 68 µH
Tolerance ±20%
Current Rating (Amps) 2.22 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 101mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 585827-DR125-680-R
Ultra Librarian 3D Model Ultra Librarian DR125-680-R CAD Model

Description

The 585827-DR125-680-R is a fixed inductor from the DR series. Eaton Bussmann manufactures it.

  • Core: Drum core, wirewound
  • Package: Tape & reel
  • Shielding: Shielded
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 68 µH
  • Maximum Seated Height: 0.236" (6.00mm)
  • Standard Package Size: 600 pieces
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 2.22 A
  • Product Status: Active
  • Offered By: Win Source
  • Series: DR
