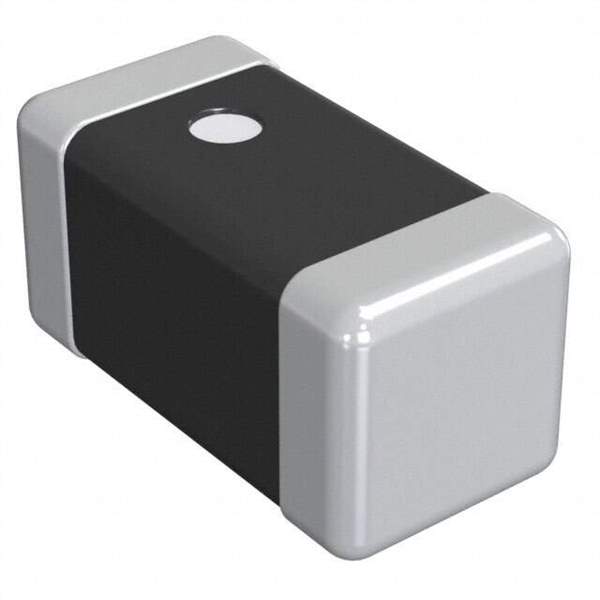

DFE18SAN1R0MG0L Real Image
Same model may have multiple batches, images only for reference.

DFE18SAN1R0MG0L

Part No DFE18SAN1R0MG0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 1.7A 128 MOHM SMD / 1 µH Shielded Inductor 1.7 A 128mOhm Max 0603 (1608 Metric)
Datasheet
DFE18SAN1R0MG0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series DFE18SAN
Package Tape & Reel
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 1.7 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 128mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number DFE18SAN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 490-16577-2,490-16577-1,490-16577-6
Standard Package 3,000
Win Source Part Number 1143869-DFE18SAN1R0MG0L
Ultra Librarian 3D Model Ultra Librarian DFE18SAN1R0MG0L CAD Model

Description

The DFE18SAN1R0MG0L inductor is a shielded fixed inductor that is used in electronic circuits.

  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance: 128mOhm Max
  • Current Rating: 1.7 A
  • Height: 0.039" (1.00mm)
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Core Material: Metal
  • Mounting Type: SMD (SMT)
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Operating Temperature: -40°C to 85°C
