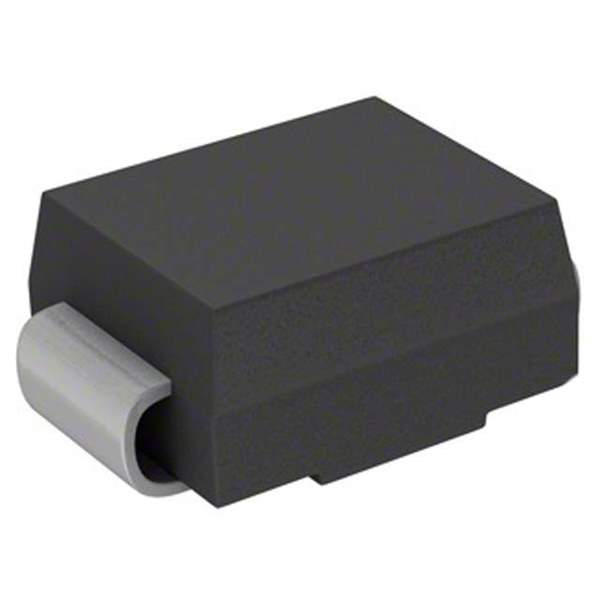

SMBJ5.0CA Real Image
Same model may have multiple batches, images only for reference.

SMBJ5.0CA

Part No SMBJ5.0CA
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC DO214AA
Datasheet
SMBJ5.0CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 65.3A
Power Dissipation - Pd 600W
Applications General Purpose
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMB (DO-214AA)
Win Source Part Number 1097802-SMBJ5.0CA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking, Computers & Computer Peripherals, Imaging, Video & Vision, Industrial
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6.4V
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 65.2A
Power - Peak Pulse 600W
Power Line Protection Yes
Operating Temperature -55°C ~ 150°C
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Ultra Librarian 3D Model Ultra Librarian SMBJ5.0CA CAD Model

Description

The Bourns Inc. SMBJ5.0CA is a high popularity electronic component with sufficient supply and demand in the market.

  • Manufacturer: Bourns Inc.
  • Product Name: SMBJ5.0CA
  • Popularity: High
  • Supply and Demand: Sufficient
  • Applications: Communications & Networking, Computers & Computer Peripherals, Imaging, Video & Vision, and Industrial
  • Type: Zener
  • Circuit Protection: Yes
  • Peak Pulse Current: 65.3A
  • Power Dissipation: 600W
  • Bidirectional: Yes
  • Breakdown Voltage (Min): 6.4V
