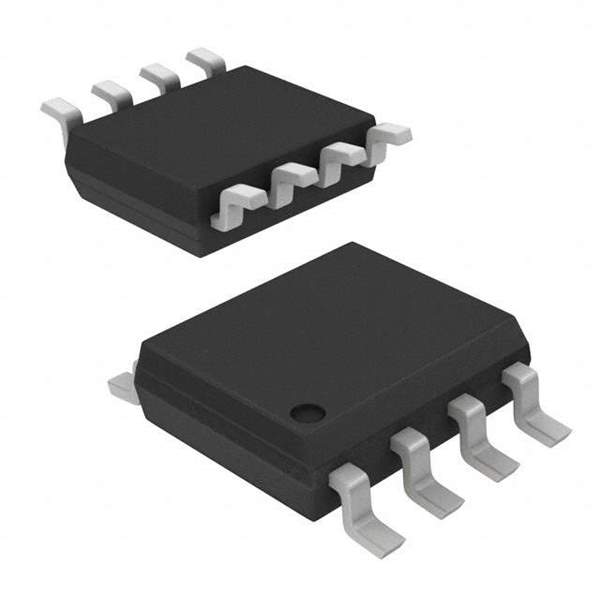

ACPL-064L-060E Real Image
Same model may have multiple batches, images only for reference.

ACPL-064L-060E

Part No ACPL-064L-060E
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description Ultra Low Power 10 MBd Digital CMOS Optocouplers | OPTOISO 3.75KV 2CH PUSH PULL 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Minimum) 20kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 80ns, 80ns
Rise / Fall Time 12ns, 12ns
Voltage - Forward (Vf) 1.3V
Current - DC Forward (If) (Maximum) 8mA
Supply Voltage (V) 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 8-SOIC
Supplier Device Package 8-SO
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1135315-ACPL-064L-060E
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACPL-064L-060E CAD Model

Description

The Broadcom Limited ACPL-064L-060E is a push-pull, totem pole output type isolator with a data rate of 10MBd.

  • Voltage Isolation: 3750Vrms.
  • Current Output/Channel: 10mA.
  • Channels: 2 channels.
  • Input Type: DC.
  • Common Mode Transient Immunity: 20kV/μs.
  • Propagation Delay tpLH/tpHL: 80ns, 80ns.
  • Supply Voltage: 2.7V ~ 5.5V.
  • Temperature Range: -40°C ~ 105°C.
  • Package: available in an 8-SOIC package.
  • Forward Current (If) Maximum: 8mA.
  • Suitability: ideal for use in applications such as isolated power supplies and motor control systems.
