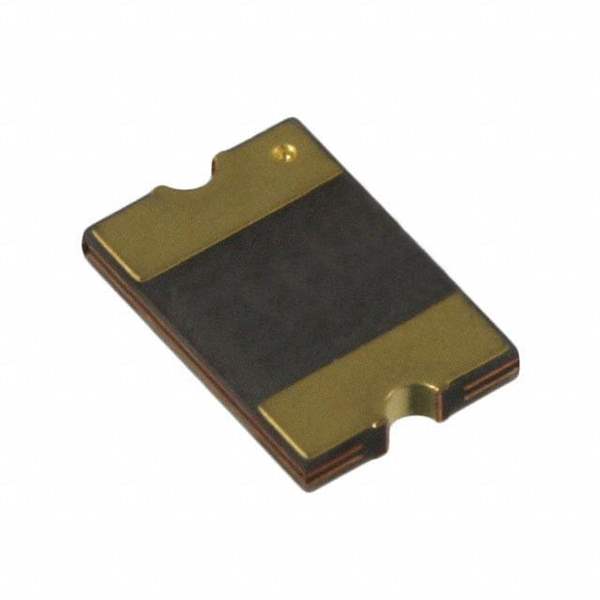

MF-MSMF250/16X-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMF250/16X-2

Part No MF-MSMF250/16X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE
Datasheet
MF-MSMF250/16X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Max) 2.5A
Current - Trip (It) 5A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 15 mOhm
Resistance - Post Trip (R1) (Max) 100 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 023195-MF-MSMF250/16X-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-MSMF250/16X-2 CAD Model

Description

The Bourns Inc. MF-MSMF250/16X-2 is a popular polymeric type circuit protection device that is known for its high performance and reliability.

  • Approvals: cURus and TUV
  • Popularity Rating: high
  • Voltage Rating: 16V
  • Maximum Current Rating: 100A
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
