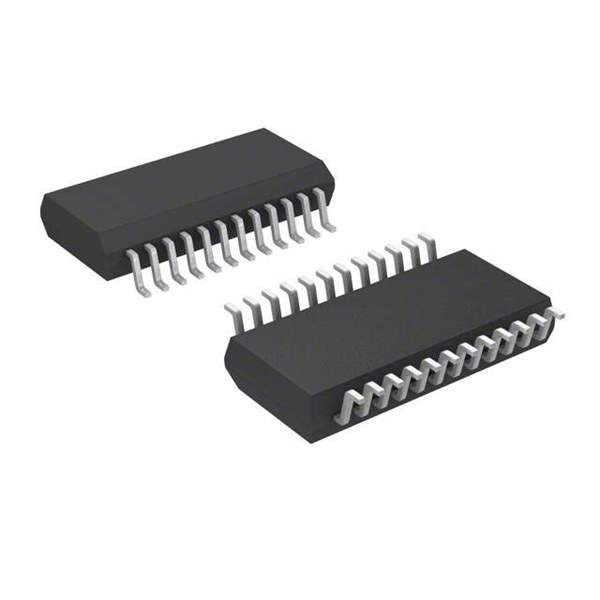

ACS726LLFTR-40B-T Real Image
Same model may have multiple batches, images only for reference.

ACS726LLFTR-40B-T

Part No ACS726LLFTR-40B-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 40A AC/DC
Datasheet
ACS726LLFTR-40B-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Reel package
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 40A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 50mV/A
Frequency DC ~ 120kHz
Linearity ±0.5%
Accuracy ±1%
Operating Supply Voltage 3 V ~ 3.6 V
Response Time 5μs
Maximum Supply Current 40mA
Operating Temperature Range -40°C ~ 150°C
Polarization Bidirectional
Mounting SMD
Package 24-SSOP (0.154", 3.90mm Width)
Win Source Part Number 766994-ACS726LLFTR-40B-T
Popularity Medium
Supply and Demand Status Limited
Family Name ACS726
Introduction Date August 13, 2014
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACS726LLFTR-40B-T CAD Model

Description

The Allegro MicroSystems ACS726LLFTR-40B-T is a Hall effect, open loop sensor type in the Sensors, Transducers category.

  • Operating Temperature Range: -40°C to 150°C
  • Mounting: Surface Mount
  • Package: 24-SSOP (0.154", 3.90mm Width)
  • Response Time: 5μs
  • Output: ratiometric, voltage
  • Polarization: bidirectional
  • Number of Channels: 1
  • Sensitivity: 50mV/A
  • Current Sensing: 40A
  • Linearity: ±0.5%
  • Accuracy: ±1%
  • Maximum Supply Current: 40mA
  • Manufactured In: Philippines
  • ECCN: EAR99
  • Estimated EOL Date: 2025
