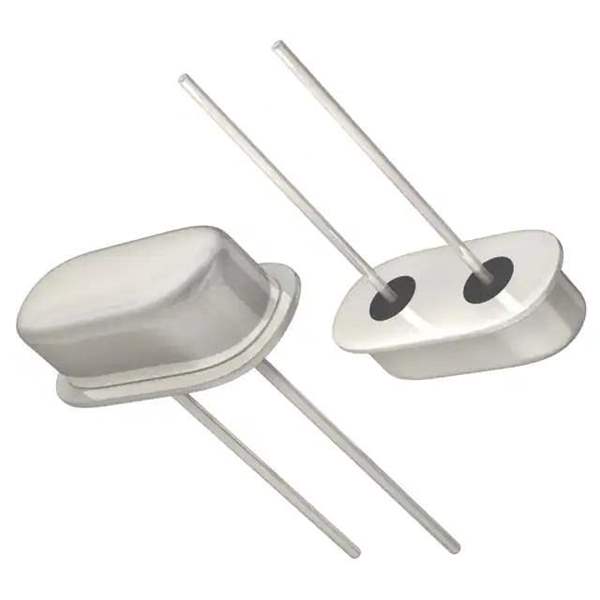

ABL-8.000MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-8.000MHZ-B2

Part No ABL-8.000MHZ-B2
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 18PF TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 849663-ABL-8.000MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-8.000MHZ-B2 CAD Model

Description

The 849663-ABL-8.000MHZ-B2 is a bulk packaged MHz crystal from the ABL series by Abracon LLC.

  • Size: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Height: 0.138" (3.50mm)
  • Frequency: 8 MHz
  • ESR: 80 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Mounting Type: Through Hole
  • Package: HC-49/US
  • Operating Temperature: -20°C to 70°C
