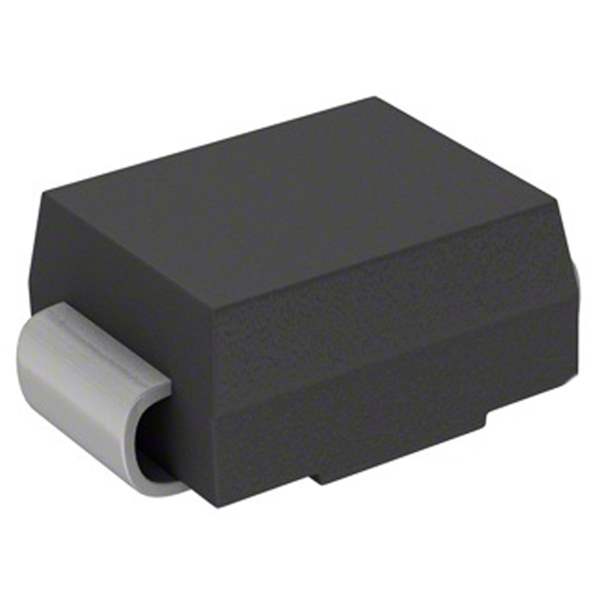

SMBJ10CA/TR13 Yageo
Same model may have multiple batches, images only for reference.

SMBJ10CA/TR13

Part No SMBJ10CA/TR13
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 10VWM 17VC DO214AA / 17V Clamp 35.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Datasheet
SMBJ10CA/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SMBJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 10V
Voltage - Breakdown (Min) 11.1V
Voltage - Clamping (Max) @ Ipp 17V
Current - Peak Pulse (10/1000µs) 35.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1361990-SMBJ10CA/TR13
Ultra Librarian 3D Model Ultra Librarian SMBJ10CA/TR13 CAD Model

Description

The SMBJ10CA/TR13 is a transient voltage suppressor diode manufactured by YAGEO. It is part of the SMBJ series and is designed for surface mount applications.

  • Maximum Operating Temperature: -55°C to 150°C
  • Reverse Standoff Voltage: 10V
  • Breakdown Voltage: 11.1V
  • Clamping Voltage: 17V @ a peak pulse current of 35.3A (10/1000µs)
  • Power Rating: 600W
  • Channel: Bidirectional
  • Package Size: DO-214AA (SMB)
