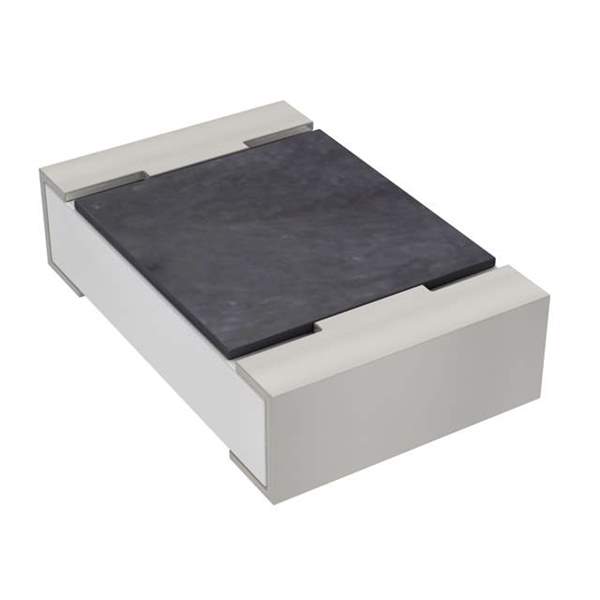

RC0805JR-07100KL Real Image
Same model may have multiple batches, images only for reference.

RC0805JR-07100KL

Part No RC0805JR-07100KL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 100K OHM 5% 1/8W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 100k
Tolerance ±5%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0805
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Win Source Part Number 1091521-RC0805JR-07100KL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RC0805JR-07100KL CAD Model

Description

The Yageo RC0805JR-07100KL resistor is a thick film resistor with a power of 0.125W, 1/8W and a resistance of 100k ohms.

  • Power: 0.125W, 1/8W
  • Resistance: 100k ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Package: 0805
  • Features: Moisture Resistant
  • Height Seated (Max): 0.024" (0.60mm)
  • Terminations: Two
  • Temperature Range: -55°C to 155°C
  • Supply and Demand Status: Balanced
