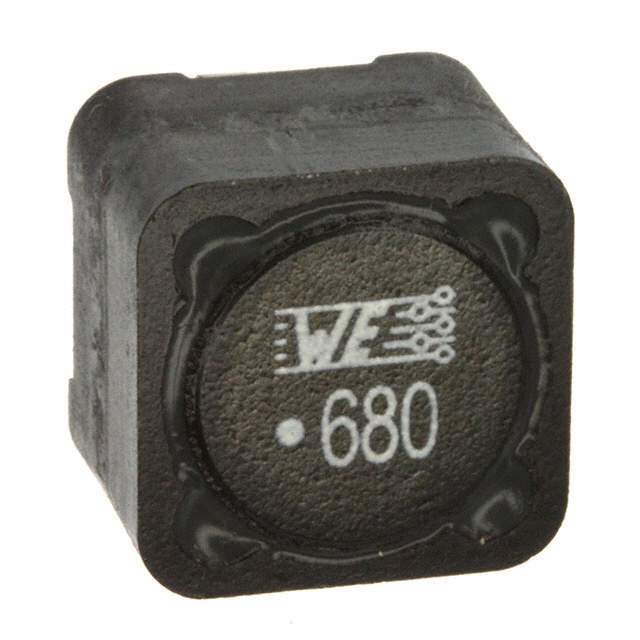

7447709680 Real Image 7447709680 real image 7447709680 real image16977
7447709680 Real Image 7447709680 real image 7447709680 real image16977
Same model may have multiple batches, images only for reference.

7447709680

Part No 7447709680
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD | FIXED IND 68UH 3.2A 89 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Supply and Demand Status Limited
Popularity Medium
MSL Level 1 (Unlimited)
Manufacturer Pack Quantity 1
Supplier Device Package 1210
Manufacturer Package Nonstandard
Mounting Style SMD
Temperature Range - Operating -40°C ~ 125°C
Frequency - Self Resonant 5.5MHz
Shielding Shielded
Current - Saturation 3.6A
Current Rating (Amps) 3.2A
Tolerance ±20%
Inductance 68μH
Material - Core Ferrite
Type Wirewound
Packaging Reel
Manufacturer Wurth Electronics Inc.
Categories Inductors, Coils, Chokes
DC Resistance (DCR) 89mOhm Max
Ratings AEC-Q200
Inductance Frequency - Test 1kHz
Parts Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Manufacturer Homepage www.we-online.com
Win Source Part Number 1130057-7447709680
Ultra Librarian 3D Model Ultra Librarian 7447709680 CAD Model

Description

The Wurth Electronics Inc. 7447709680 is a wirewound inductor designed for use in electronic devices.

  • Manufacturer: Wurth Electronics Inc.
  • Type: Wirewound inductor
  • Inductance: 68μH
  • Tolerance: ±20%
  • Application: Inductor, coil, and choke
  • Package: Reel
  • Height: 0.394" (10.00mm)
  • Current Saturation: 3.6A
  • DC Resistance: 89mOhm max
  • AEC-Q200: Yes
  • Popularity: Medium
  • Supply and Demand: Limited
  • Shielded: Yes
  • Material: Ferrite
  • Frequency Range: 1kHz
