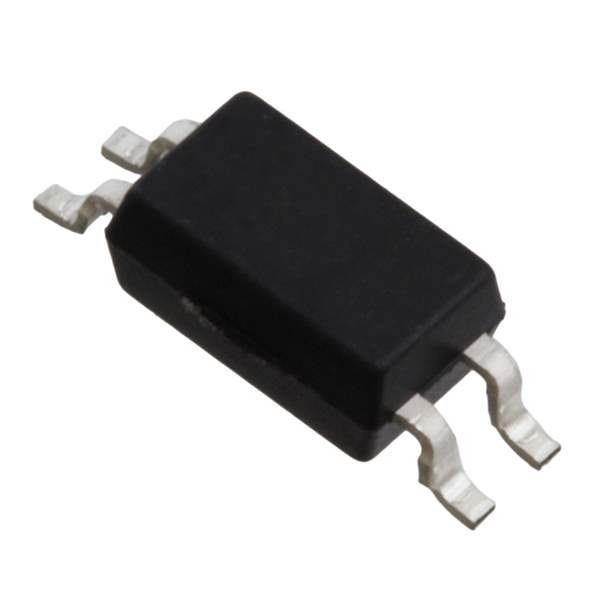

VOS617A-4T Real Image
Same model may have multiple batches, images only for reference.

VOS617A-4T

Part No VOS617A-4T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 3.75KV TRANS 4SSOP
Datasheet
VOS617A-4T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Vishay
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 160% @ 5mA
Maximum DC Current Transfer Ratio 320% @ 5mA
Switching Turn-On and Turn-Off Time 6μs, 4μs
Rise and Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.18V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C to 110°C
Mounting SMD (SMT)
Case / Package 4-SSOP
Win Source Part Number 1117574-VOS617A-4T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VOS617A-4T CAD Model

Description

The VOS617A-4T from Vishay is an isolator product that has a minimum DC current transfer ratio of 160% @ 5mA and a maximum DC current transfer ratio of 320% @ 5mA.

  • Switching Turn-On Time: 6μs
  • Switching Turn-Off Time: 4μs
  • Rise Time: 3μs
  • Fall Time: 3μs
  • Maximum Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Case/Package: 4-SSOP
  • Isolation Voltage: 3750Vrms
  • Forward Voltage: 1.18V
  • Vce Saturation (max): 400mV
  • Temperature Range: -55°C to 110°C
  • Category: Isolators
  • Status: Active
  • Supply and Demand Status: Balanced
