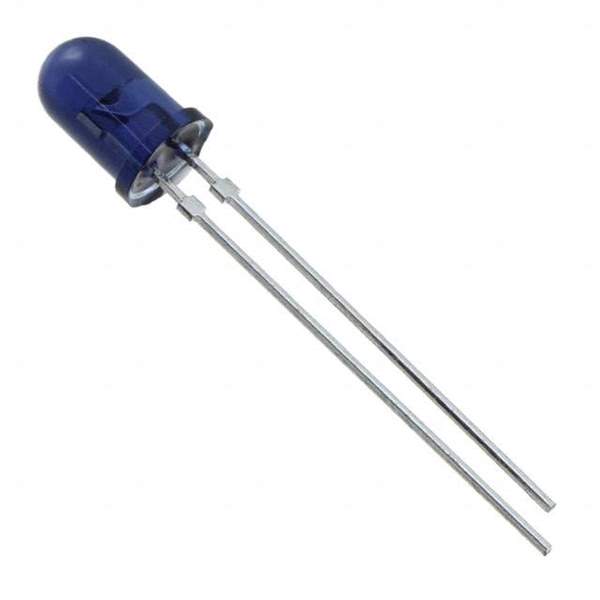

TSUS5202 Real Image
Same model may have multiple batches, images only for reference.

TSUS5202

Part No TSUS5202
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 950NM 150MA RADIAL
Datasheet
TSUS5202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 150mA
Radiant Intensity (Ie) Min @ If 20mW/sr @ 100mA
Wavelength 950nm
Forward Voltage 2.2V
Viewing Angle 30°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Dimension Radial
Win Source Part Number 213566-TSUS5202
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSUS5202 CAD Model

Description

The Vishay 213566-TSUS5202 is an infrared (IR) emitter with a viewing angle of 30 degrees and a wavelength of 950nm.

  • Viewing Angle: 30 degrees
  • Wavelength: 950nm
  • Package: Radial
  • Mounting Type: Through Hole
  • Forward Voltage: 2.2V
  • Continuous Forward Current: 150mA
  • Radiant Intensity (Ie): 20mW/sr @ 100mA
  • Supply and Demand Status: Limited
  • Package: Bulk
  • Temperature Range: -40°C to 85°C (TA)
