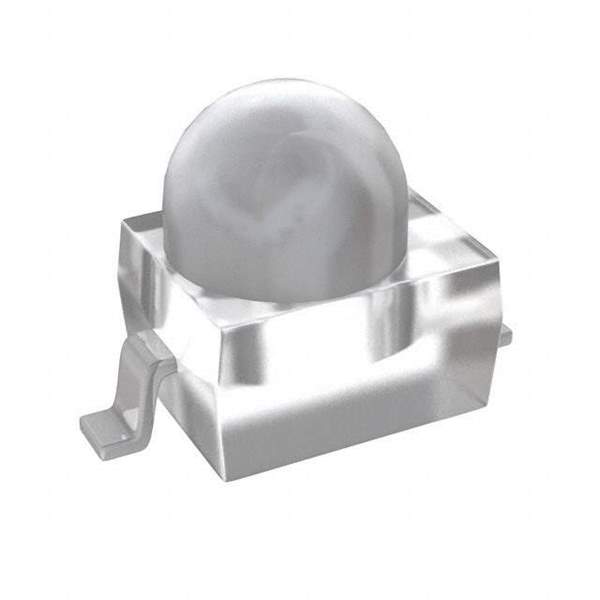

TSML1020 Real Image
Same model may have multiple batches, images only for reference.

TSML1020

Part No TSML1020
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description Infrared Emitter 950nm 7mW/sr Circular Top Mount 2-Pin SMD T/R / EMITTER IR 940NM 100MA SMD
Datasheet
TSML1020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 3mW/sr @ 20mA
Wavelength 940nm
Forward Voltage 1.2V
Viewing Angle 24°
Orientation Top View
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Dimension 2-SMD, Gull Wing
Win Source Part Number 135905-TSML1020
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TSML1020
Introduction Date July 18, 2003
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TSML1020 CAD Model

Description

The TSML1020 is a high popularity electronic component used in optoelectronics.

  • Type: infrared (IR)
  • Orientation: top view
  • Mounting: SMD (SMT)
  • Viewing Angle: 24°
  • Wavelength: 940nm
  • Radiant Intensity (Ie) min @ If: 3mW/sr @ 20mA
  • Continuous Forward Current - max: 100mA
  • Supply and Demand Status: sufficient
