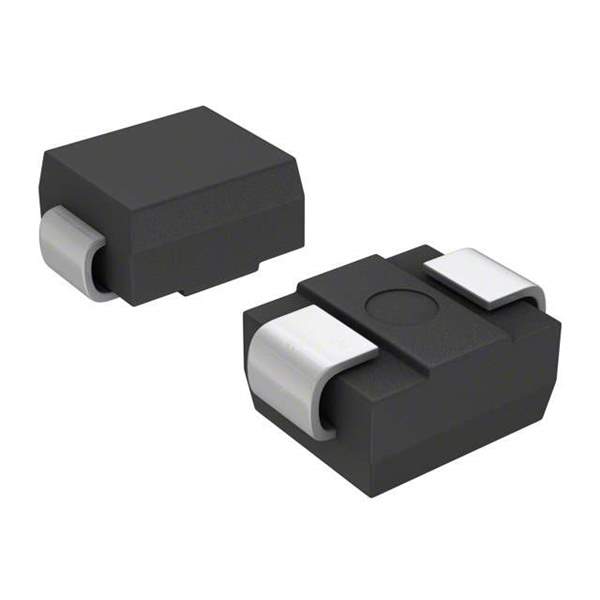

S2A-E3/52T

Part No S2A-E3/52T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 1.5A DO214AA
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 1.5A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2μs
Current - Reverse Leakage @ Vr 1μA @ 50V
Capacitance @ Vr, F 16pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 063082-S2A-E3/52T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S2A-E3/52T CAD Model

Description

The Vishay Standard Diode has a voltage - DC reverse (Vr) (Max) of 50V.

  • Voltage - DC Reverse (Vr) (Max): 50V
  • Current - Average Rectified (Io): 1.5A
  • Voltage - Forward (Vf) (Max) @ If: 1.15V @ 1.5A
  • Reverse Recovery Time (trr): 2μs
  • Current - Reverse Leakage @ Vr: 1μA @ 50V
  • Capacitance @ Vr, F: 16pF @ 4V, 1MHz
  • Application: Discrete Semiconductor Products
  • Mounting Type: Surface Mount
  • Package: DO-214AA (SMB)
  • Popularity: Medium
  • Supply and Demand Status: Balance
