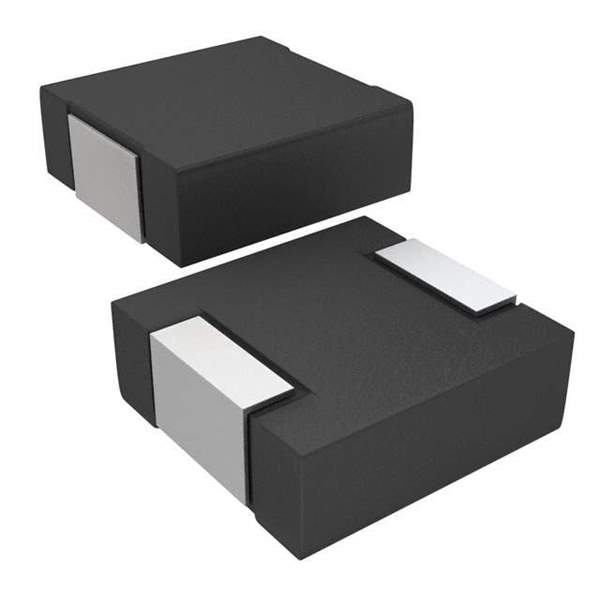

IHLP2020BZER4R7M11 Real Image
Same model may have multiple batches, images only for reference.

IHLP2020BZER4R7M11

Part No IHLP2020BZER4R7M11
Manufacturer Vishay
Catalog Fixed Inductors
Description Low Profile, High Current IHLP Inductors | FIXED IND 4.7UH 3.2A 81.3 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Packaging Reel
Type Molded
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 3.2A
Current - Saturation 3A
Shielding Shielded
DC Resistance (DCR) 81.3mOhm Max
Frequency - Self Resonant 27MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1185312-IHLP2020BZER4R7M11
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian IHLP2020BZER4R7M11 CAD Model

Description

The IHLP2020BZER4R7M11 is a shielded molded inductor manufactured by Vishay Dale.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • DC Resistance: 81.3mOhm Max
  • Current Saturation: 3A
  • Frequency Self-Resonant: 27MHz
  • Operating Temperature Range: -55°C to 125°C
  • Applications: inductors, coils, and chokes
  • Package: nonstandard
  • Height: 0.079" (2.00mm)
  • Parts Dimension: 0.216" L x 0.204" W (5.49mm x 5.18mm)
  • Current Rating: 3.2A
  • Inductance Frequency-Test: 100kHz
