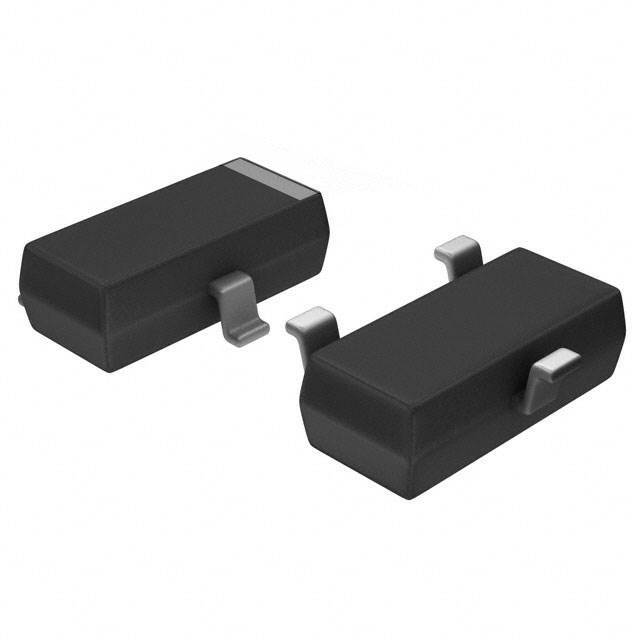

GSOT05C-E3-08 Vishay GSOT05C-E3-08 Real Image1 GSOT05C-E3-08 Real Image2
GSOT05C-E3-08 Vishay GSOT05C-E3-08 Real Image1 GSOT05C-E3-08 Real Image2
Same model may have multiple batches, images only for reference.

GSOT05C-E3-08

Part No GSOT05C-E3-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 16VC SOT23
Datasheet
GSOT05C-E3-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 16V
Peak Pulse Current(Ippm) 30A (8/20μs)
Power Dissipation - Pd 480W
Applications General Purpose
Capacitance @ Frequency 260pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 016754-GSOT05C-E3-08
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name GSOT05C
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian GSOT05C-E3-08 CAD Model

Description

The Vishay 016754-GSOT05C-E3-08 is a SMD (SMT) mounted zener diode suitable for use in Circuit Protection.

  • Stand-Off Voltage (Max): 5V
  • Minimum Breakdown Voltage: 6V
  • Capacitance (1MHz): 260pF
  • Peak Pulse Current (Ippm): 30A (8/20μs)
  • Power Dissipation (Pd): 480W
  • Packaging: Reel - TR
  • Operating Temperature: -55°C to 150°C
  • Supply and Demand: Sufficient
