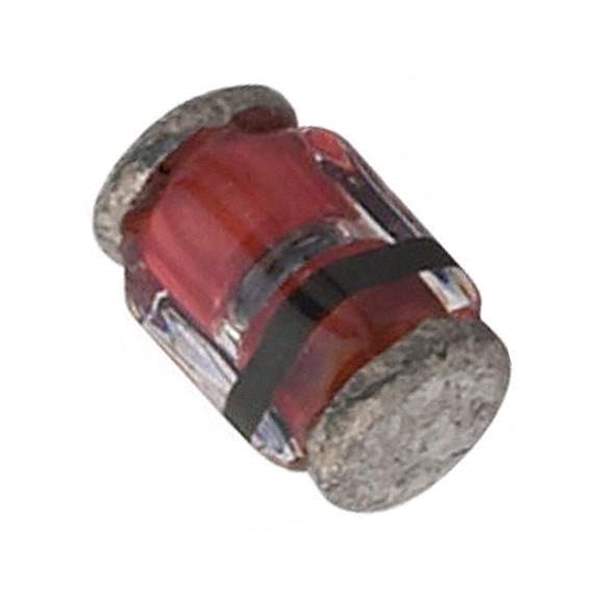

BAS385-TR Real Image
Same model may have multiple batches, images only for reference.

BAS385-TR

Part No BAS385-TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA MICMELF
Datasheet
BAS385-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Current - Reverse Leakage @ Vr 2.3μA @ 25V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package MicroMELF
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 010899-BAS385-TR
Family Name BAS385
Introduction Date May 19, 1999
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BAS385-TR CAD Model

Description

BAS385-TR Schottky Diode

The BAS385-TR is known for its ultra-fast reverse recovery time and low power consumption, making it suitable for high-efficiency designs.

  • Applications:
    • Fast switching converters
    • Low voltage rectification
    • Protection circuits
  • Features and Benefits:
    • Reduced thermal resistance enhances performance
    • High frequency operation
    • Miniature SOD-323 package supports compact layouts

    • Additional Details: This diode is compliant with global environmental standards and delivers optimal functionality under diverse conditions.
