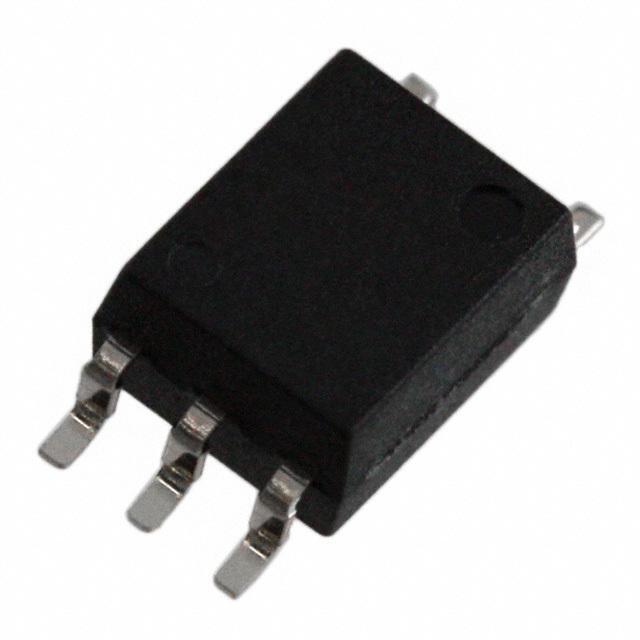

TLP2745 Toshiba Semiconductor and Storage TLP2745 real image7461 TLP2745 real image7462
TLP2745 Toshiba Semiconductor and Storage TLP2745 real image7461 TLP2745 real image7462
Same model may have multiple batches, images only for reference.

TLP2745

Part No TLP2745
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 6-Pin SO / OPTOISO 5KV PUSH PULL SO6L
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 30kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 120ns, 120ns
Rise and Fall Time 3ns, 3ns
Forward Voltage 1.55V
Continuous forward current- Max 15mA
Supply Voltage - Operating 4.5 V to 30 V
Temperature Range - Operating -40°C to 110°C
Mounting SMD (SMT)
Case / Package 6-SO
Win Source Part Number 121484-TLP2745
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name TLP2745
Introduction Date January 29, 2015
ECCN EAR99
Country of Origin Japan, Thailand
Estimated EOL Date 2035
Ultra Librarian 3D Model Ultra Librarian TLP2745 CAD Model

Description

The Toshiba Semiconductor and Storage 121484-TLP2745 is an SMD (SMT) mounted, push-pull, totem pole output type isolator with 1 channel and 1 input type of DC.

  • Mounting: SMD (SMT)
  • Output Type: Push-Pull, Totem Pole
  • Number of Channels: 1
  • Input Type: DC
  • Common Mode Transient Immunity: 30kV/μs
  • Propagation Delay tpLH / tpHL (Max): 120ns, 120ns
  • Isolation Voltage: 5000Vrms
  • Supply Voltage Range: 4.5V to 30V
  • ECCN: EAR99
  • Estimated EOL Date: 2035
