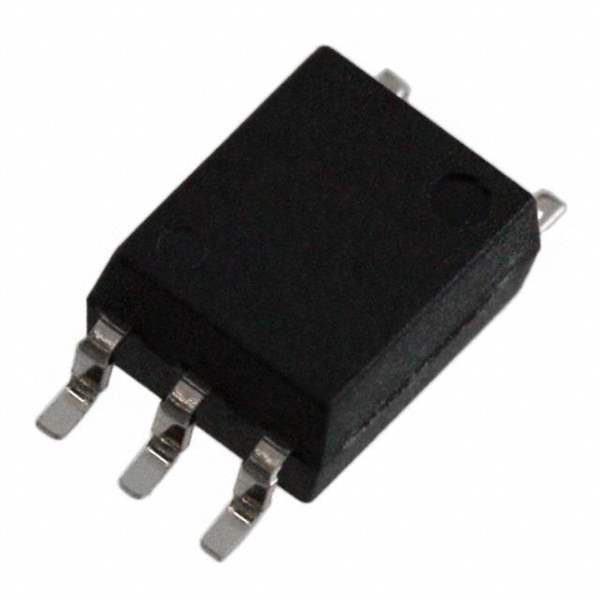

TLP116A(TPL,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP116A(TPL,E

Part No TLP116A(TPL,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description High Speed Optocouplers Pwr Suply 6V100degC Oper 5.5V 3750Vrms
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Reel - TR
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Push-Pull, Totem Pole
Channel Output Current 10mA
Data Rate 20MBd
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Rise and Fall Time 15ns, 15ns
Forward Voltage 1.58V
Continuous forward current- Max 20mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SO, 5 Lead
Win Source Part Number 1108827-TLP116A(TPL,E
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TLP116A(TPL,E CAD Model

Description

The TLP116A(TPL,E) is an optocoupler manufactured by Toshiba Semiconductor and Storage.

  • Output Type: push-pull, totem pole
  • Data Rate: 20MBd
  • Forward Voltage: 1.58V
  • Input Type: DC
  • Channels: 1
  • Inputs Side 1: 1
  • Inputs Side 2: 0
  • Common Mode Transient Immunity: 10kV/μs
  • Propagation Delay (tpLH): 60ns
  • Propagation Delay (tpHL): 60ns
  • Isolation Voltage: 3750Vrms
  • Package: 6-SO, 5 Lead
  • Temperature Range: -40°C to 100°C
  • Channel Output Current: 10mA
  • Continuous Forward Current: 20mA
