Product Overview: TXB0108RGYR by Texas Instruments

The TXB0108RGYR is a versatile 8-bit bidirectional voltage-level translator from Texas Instruments designed for interconnection systems with two different voltage domains. It is part of the TXB series, which is specifically engineered to offer a robust solution for applications requiring voltage translation between different logic levels ranging from 1.2V to 3.6V on the A side and 1.65V to 5.5V on the B side.

This innovative device uses two separate configurable power-supply rails, with the A port tracks the VCCA pin supply voltage, and the B port tracks the VCCB pin supply voltage. The TXB0108RGYR is particularly adept at automatically sensing the direction of data flow without the need for a direction control signal, simplifying its use in a variety of applications including but not limited to mobile phones, PDAs, and other portable devices.

The device's 8 channels are designed to be used in parallel, providing a convenient one-chip solution for voltage translation. This eliminates the need for multiple discrete components, thereby saving space and reducing complexity in system design. Texas Instruments has equipped the TXB0108RGYR with a robust design that includes a built-in clamp diode for over-voltage protection, enhancing the longevity and reliability of the device.

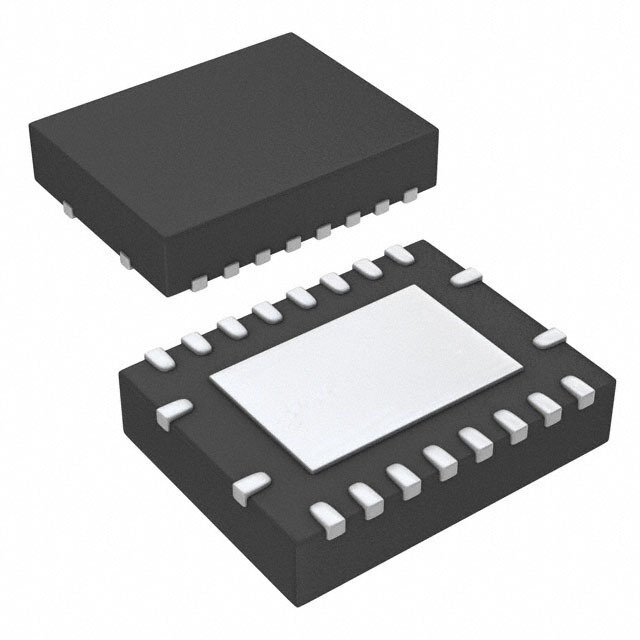

For ease of implementation, the TXB0108RGYR comes in a small, surface-mount, lead-free VQFN-20 package, making it ideal for space-constrained applications. It supports up to 100Mbps communication speed for push-pull applications and up to 33Mbps for open-drain applications, making it suitable for high-speed signal translation.

In summary, the TXB0108RGYR from Texas Instruments is an essential component for system designers looking for a high-performance, low-power, and easy-to-use interface solution that bridges the gap between different voltage levels, all within a compact footprint.
