Product Overview: TCA9543APWR

The TCA9543APWR is a highly integrated circuit designed and manufactured by Texas Instruments, one of the leading companies in the semiconductor industry. This device is a 2-channel I²C switch with interrupt logic, providing the perfect solution for applications that require the expansion of I²C bus capabilities.

Key Features

• Channel Number: The TCA9543APWR offers two bidirectional translating channels that can select different I²C devices, which helps in avoiding address conflict issues.
• Interrupt Logic: Featuring interrupt logic, the device allows for the system to respond to the interrupt signals from downstream I²C devices, enhancing communication efficiency and reliability.
• Power Supply: It operates over a wide supply voltage range from 2.3V to 5.5V, making it suitable for a variety of power environments and applications.
• Low Standby Current: The low standby current consumption is ideal for power-sensitive applications, contributing to overall energy efficiency.

Applications

The TCA9543APWR is versatile and can be used in multiple applications, including:

• Server and telecom infrastructure
• Industrial control systems
• Consumer electronics
• Medical equipment
• Networking equipment

Package and Quality

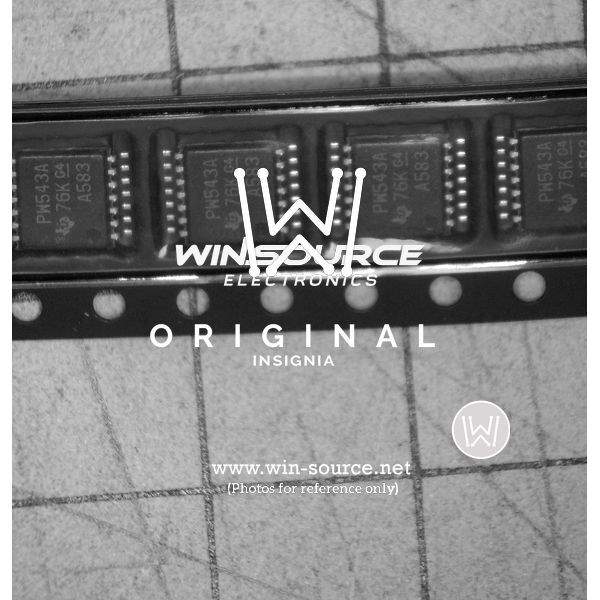

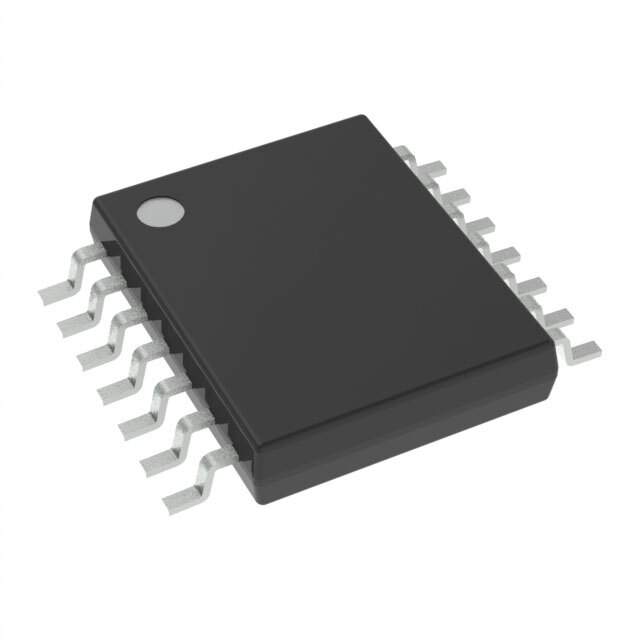

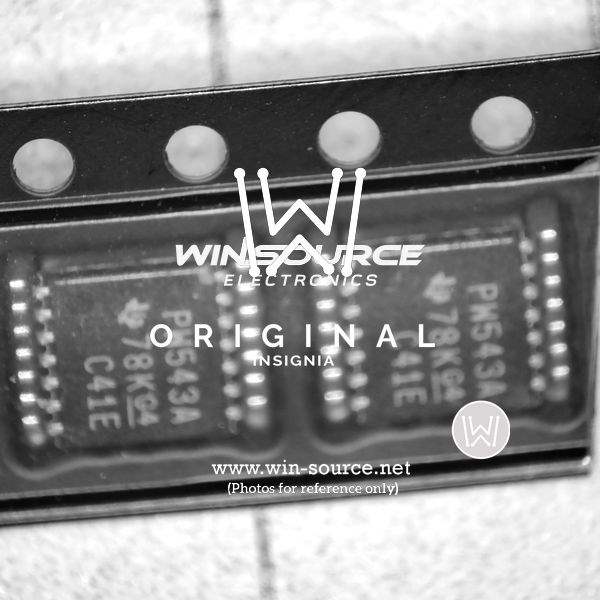

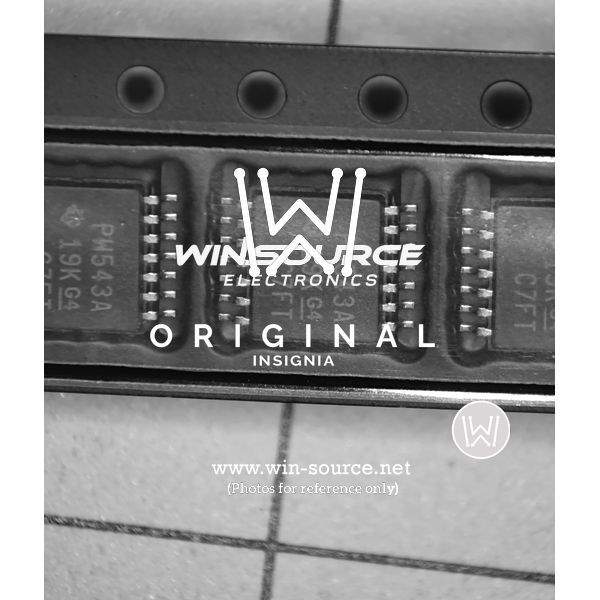

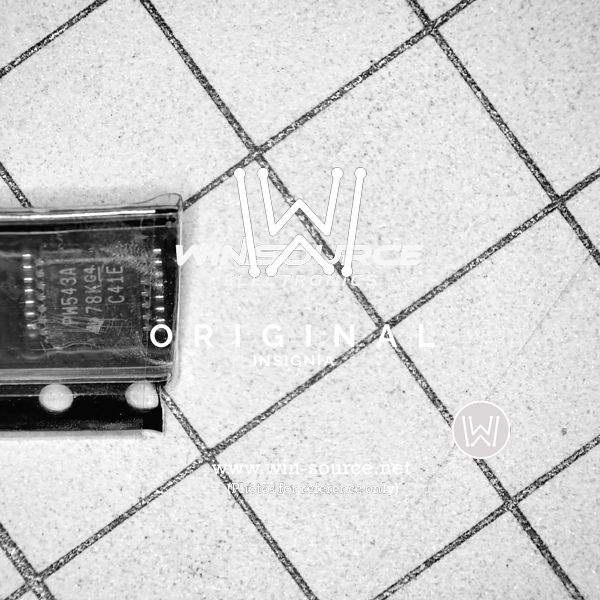

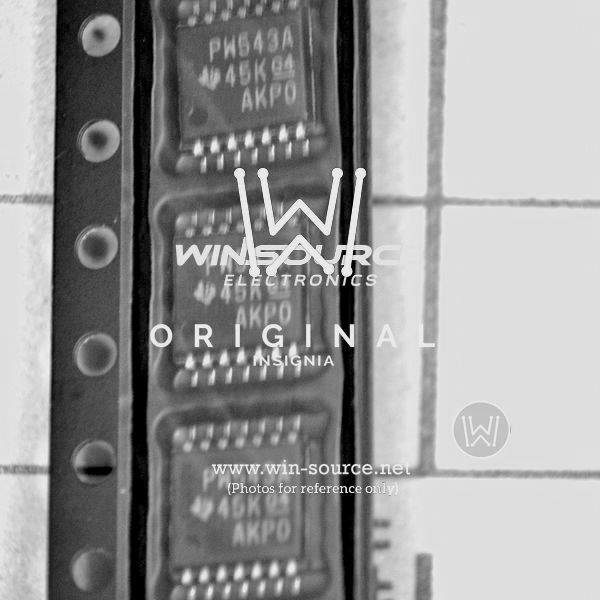

Encased in the industry-standard TSSOP (Thin Shrink Small Outline Package), the TCA9543APWR is designed for space-saving on printed circuit boards and ensures reliable connection for easy integration into various designs. Texas Instruments' commitment to quality means that this product meets high standards of performance and reliability.

Support and Resources

Texas Instruments provides comprehensive technical support for the TCA9543APWR, including detailed datasheets, application notes, and design resources to assist engineers in integrating this I²C switch into their projects seamlessly.
