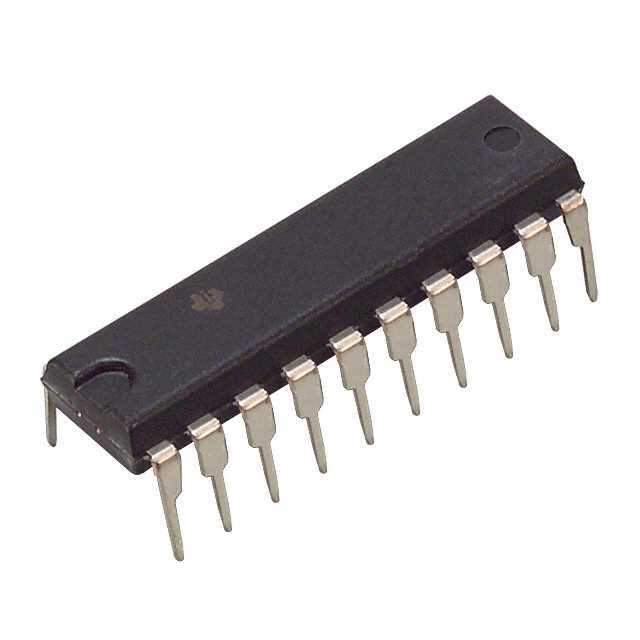

SN74HC540N Real Image SN74HC540N real image5998 SN74HC540N real image5999
SN74HC540N Real Image SN74HC540N real image5998 SN74HC540N real image5999
Same model may have multiple batches, images only for reference.

SN74HC540N

Part No SN74HC540N
Manufacturer Texas Instruments
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description Buffer/Line Driver 8-CH Inverting 3-ST CMOS 20-Pin PDIP Tube / IC INVERTER 8-INPUT 20DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Logic Type Buffer, Inverting
Number of Elements 1
Number of Bits per Element 8
Output Type Push-Pull
Current - Output High, Low 7.8mA, 7.8mA
Supply Voltage - Operating 2 V to 6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting Through Hole
Case / Package 20-PDIP
Win Source Part Number 138179-SN74HC540N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name SN74HC540
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian SN74HC540N CAD Model

Description

The SN74HC540N is a high-performance, octal buffer and line driver designed and manufactured by Texas Instruments, a renowned global semiconductor company.

  • Features: Eight inverting buffers with three-state outputs
  • Operating Voltage Range: 2 to 6 volts
  • Package: 20-PIN PDIP
  • Standard Compliance: JEDEC standard no. 7A
  • Operating Temperature Range: -40°C to 85°C
