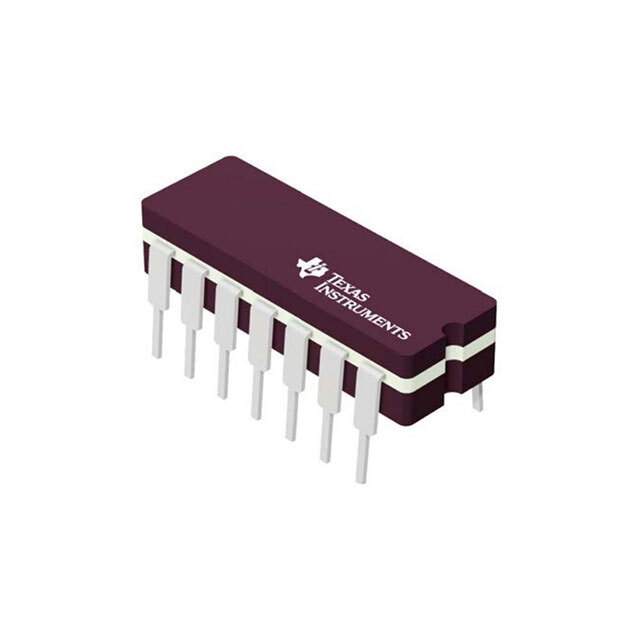

SN74HC14N Real Image SN74HC14N real image SN74HC14N label picture SN74HC14N real image5981 SN74HC14N real image5982 SN74HC14N Real Image1 SN74HC14N Real Image2 SN74HC14N Real Image3 SN74HC14N Real Image4
SN74HC14N Real Image SN74HC14N real image SN74HC14N label picture SN74HC14N real image5981 SN74HC14N real image5982 SN74HC14N Real Image1 SN74HC14N Real Image2 SN74HC14N Real Image3 SN74HC14N Real Image4
Same model may have multiple batches, images only for reference.

SN74HC14N

Part No SN74HC14N
Manufacturer Texas Instruments
Catalog Logic - Gates and Inverters
Description Inverter Schmitt Trigger 6-Element CMOS 14-Pin PDIP Tube / IC HEX SCHMITT-TRIG INV 14-DIP
Datasheet
SN74HC14N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Logic Type Inverter
Number of Circuits 6
Number of Inputs 6
Features Schmitt Trigger
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.3 V to 1.2 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 21ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 14-PDIP
Dimension 14-DIP (0.300", 7.62mm)
Win Source Part Number 006833-SN74HC14N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Defence, Military & Aerospace
Family Name SN74HC14
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin China, Malaysia, Mexico, Taiwan, Thailand, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian SN74HC14N CAD Model

Description

The SN74HC14N is a high-performance, integrated circuit product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Function: hex inverting Schmitt trigger
  • Voltage Range: 2V to 6V
  • Noise Immunity: 0.9V
  • Package: 14-pin PDIP (Plastic Dual Inline Package)
  • Compliance: RoHS compliant
  • Operating Temperature Range: from -40°C to 85°C
