Product Overview: SN74AVC4T234ZSUR by Texas Instruments

The SN74AVC4T234ZSUR is a high-performance, 4-bit dual-supply bus transceiver from Texas Instruments (TI), engineered to deliver seamless data transfer between two asynchronous communication buses. This advanced component is designed for low-voltage bidirectional translation between mixed-voltage systems, making it an ideal choice for multi-voltage digital systems integration.

The device operates with two separate power supply levels, ranging from 1.2V to 3.6V on the A side (V_CCA) and 1.65V to 5.5V on the B side (V_CCB), which allows for voltage level translation between different logic levels. This versatility makes the SN74AVC4T234ZSUR perfect for interfacing between microprocessors or microcontrollers and peripherals with different voltage requirements.

Key Features

• Low-Voltage Operation: The SN74AVC4T234ZSUR supports low-voltage data transfer, ensuring compatibility with modern low-power devices.
• Bidirectional Data Flow: The device allows for bidirectional data flow without the need for a direction control signal, simplifying the design and reducing the pin count.
• High-Speed Data Transfer: With its optimized design, the transceiver is capable of supporting high-speed data transfer, which is essential for high-performance computing and communication systems.
• Robust ESD Protection: The device includes electrostatic discharge (ESD) protection circuits that safeguard the transceiver against accidental static discharges.
• Power-Off Protection: The SN74AVC4T234ZSUR features power-off protection, which prevents any damaging backflow current when the device is powered down.

Applications

Due to its dual-supply voltage capability and bidirectional interface, the SN74AVC4T234ZSUR is suitable for a wide range of applications, including:

• Level translation for mixed-voltage systems in consumer electronics
• Interface bridging in multi-voltage platforms such as mobile phones, tablets, and laptops
• Signal buffering in data communication systems
• Bus isolation in servers and networking equipment

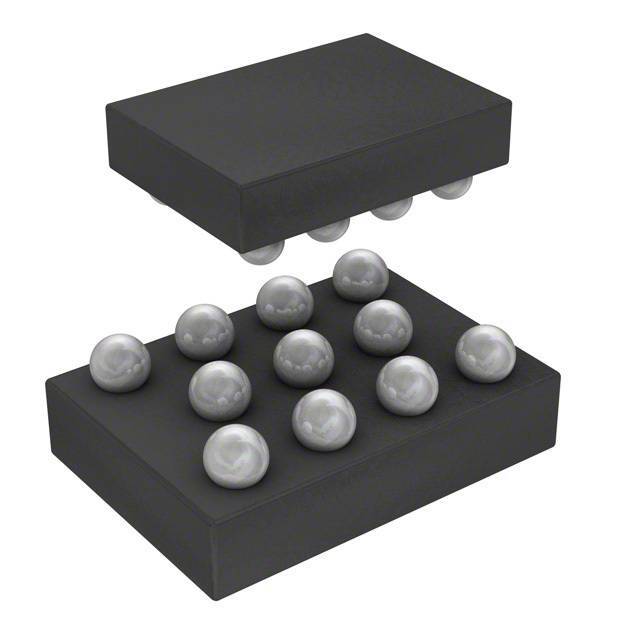

The SN74AVC4T234ZSUR comes in a compact, surface-mount package, offering a space-saving solution for densely packed PCBs. With its high-speed operation and low-power consumption, this bus transceiver from Texas Instruments is an excellent choice for designers looking to enhance the efficiency and reliability of their digital systems.
