The LSF0102DCUR from Texas Instruments is a state-of-the-art, dual bidirectional multi-voltage level translator designed for applications that require seamless voltage level translation for data lines. This device is perfect for creating an interface between different voltage domains in a mixed-voltage digital system.

Key Features:

• Voltage Level Translation: The LSF0102DCUR is capable of translating voltages between two distinct logic levels ranging from 0.8V to 3.6V on the A side and 1.2V to 5.5V on the B side, making it highly versatile for interfacing between low-voltage and higher-voltage components.
• Bidirectional Operation: Its bidirectional nature allows for automatic direction sensing which eliminates the need for a direction control pin, simplifying the design and saving valuable GPIOs on microcontrollers.
• ESD Protection: The device comes with integrated Electrostatic Discharge (ESD) protection circuits, ensuring robustness and reliability in challenging environments, with ESD protection exceeding JESD 22, providing a high degree of durability against static electricity and surges.
• Low Power Consumption: It has been designed with power-conscious applications in mind, featuring a low quiescent current that helps to minimize power consumption in portable and battery-operated devices.
• Non-Preferential Power-Up Sequencing: The LSF0102DCUR does not require a specific power supply sequence to be followed, allowing for ease of use and integration into existing designs without the need for additional circuitry or power management considerations.

Applications:

The LSF0102DCUR is suitable for a wide range of applications, including but not limited to:

• Mobile Devices
• Computers and Peripherals
• Networking and Telecommunications Equipment
• Consumer Electronics
• Industrial and Medical Instrumentation

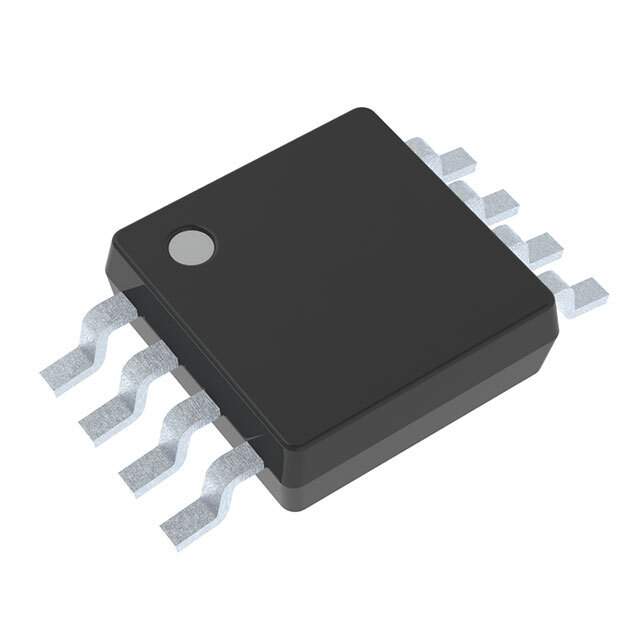

With its compact 8-pin VSSOP package, the LSF0102DCUR is an excellent choice for space-constrained applications. Its ease of use, coupled with Texas Instruments' reputation for quality and support, makes it an indispensable component for designers looking to bridge the gap between different voltage domains efficiently and reliably.
