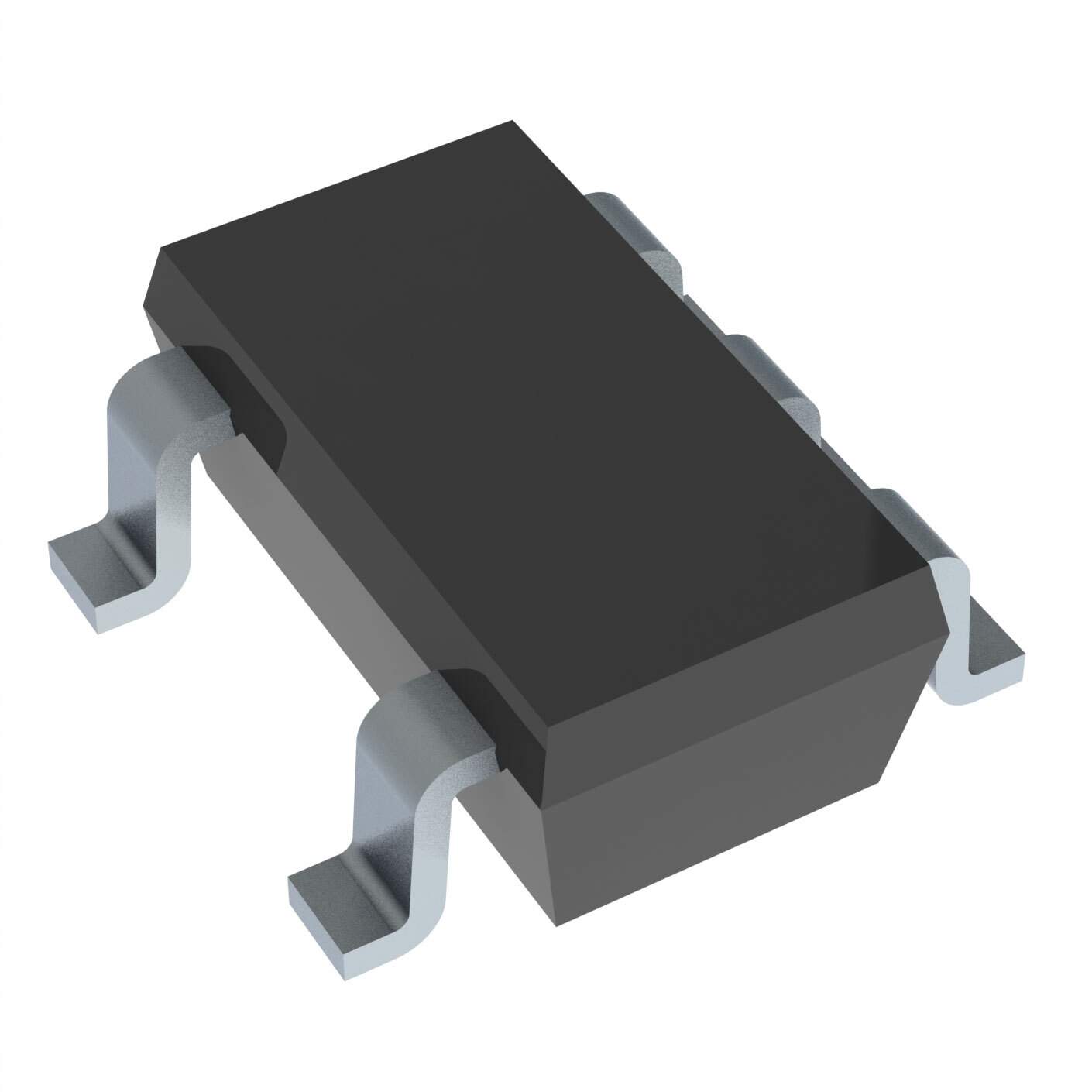

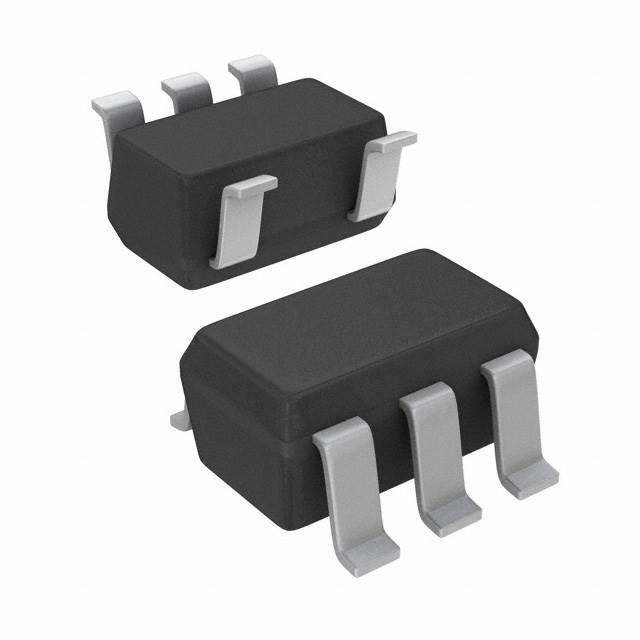

LMC7101BIM5X/NOPB Texas Instruments LMC7101BIM5X/NOPB Real Image LMC7101BIM5X/NOPB real image1757 LMC7101BIM5X/NOPB Real Image1 LMC7101BIM5X/NOPB Real Image2 LMC7101BIM5X/NOPB Real Image3
LMC7101BIM5X/NOPB Texas Instruments LMC7101BIM5X/NOPB Real Image LMC7101BIM5X/NOPB real image1757 LMC7101BIM5X/NOPB Real Image1 LMC7101BIM5X/NOPB Real Image2 LMC7101BIM5X/NOPB Real Image3
Same model may have multiple batches, images only for reference.

LMC7101BIM5X/NOPB

Part No LMC7101BIM5X/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1.1MHZ RRO SOT23-5
Datasheet
LMC7101BIM5X/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 1.1 V/μs
Gain Bandwidth Product (GBP) 1.1MHz
Current - Input Bias 1pA
Voltage - Input Offset 110μV
Operating Supply Current 800μA
Channel Output Current 50mA
Supply Voltage - Operating 2.7 V to 15.5 V, ±1.35 V to 7.75 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 136843-LMC7101BIM5X/NOPB
Family Name LMC7101
Introduction Date April 27, 2002
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LMC7101BIM5X/NOPB CAD Model

Description

The is a high-performance operational amplifier from Texas Instruments.

  • Features: Rail-to-rail output, low input bias current, high open-loop gain
  • Power Supply Voltage: 2.7V to 15.5V
  • Temperature Range: -40°C to 85°C
  • Package: SOT-23
  • Applications: Battery-powered devices, high impedance signal amplification, mobile communications, precision amplification
