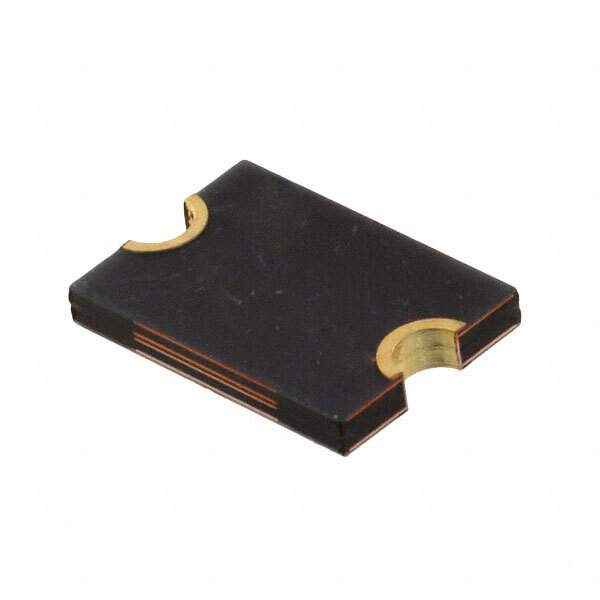

MF-LSMF300/24X-2 Bourns Inc. MF-LSMF300/24X-2 Real Image MF-LSMF300/24X-2 real image MF-LSMF300/24X-2 real image3139
MF-LSMF300/24X-2 Bourns Inc. MF-LSMF300/24X-2 Real Image MF-LSMF300/24X-2 real image MF-LSMF300/24X-2 real image3139
Same model may have multiple batches, images only for reference.

MF-LSMF300/24X-2

Part No MF-LSMF300/24X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESET 3.0A 24V SMD
Datasheet
MF-LSMF300/24X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 20A
Current - Hold (Ih) (Max) 3A
Current - Trip (It) 5.2A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 20 mOhm
Resistance - Post Trip (R1) (Max) 75 mOhm
Temperature Range - Operating -40°C to 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.289" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Max) 0.063" (1.60mm)
Approvals cURus, TUV
Win Source Part Number 023185-MF-LSMF300/24X-2
Family Name MF-LSMF
Introduction Date December 17, 2010
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-LSMF300/24X-2 CAD Model

Description

The Bourns Inc. MF-LSMF300/24X-2 is a polymeric circuit protection component.

  • Voltage: 24V
  • Current: 20A
  • Approvals: cURus, TUV
  • Mounting: SMD (SMT)
  • Thickness: 0.063" (1.60mm)
  • Family: MF-LSMF
  • ECCN Code: EAR99
  • REACH Compliant: Yes
  • Supply and Demand Status: Balanced
  • Rated: AEC-Q200
  • Resistance - Initial (Ri) (Min): 20 mOhm
  • Resistance - Post-Trip (R1) (Max): 75 mOhm
  • Estimated EOL Date: 2023
  • Common Applications: computers and computer peripherals, telecommunications equipment, and industrial applications
