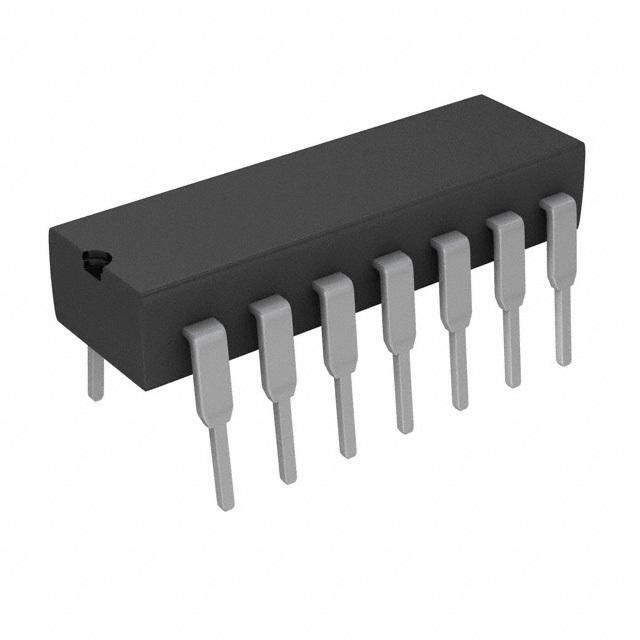

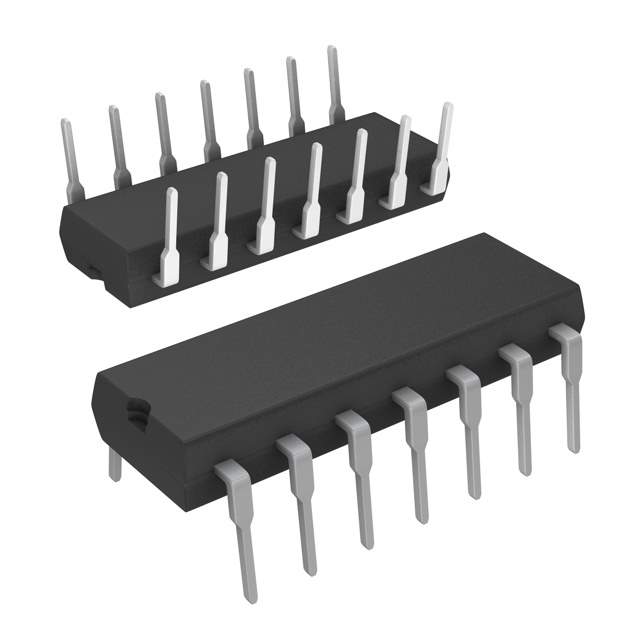

LM324N

Part No LM324N
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 1.2MHZ 14DIP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type General Purpose
Number of Circuits 4
Slew Rate 0.5 V/μs
Gain Bandwidth Product (GBP) 1.2MHz
Current - Input Bias 20nA
Voltage - Input Offset 3mV
Operating Supply Current 1.4mA
Channel Output Current 60mA
Supply Voltage - Operating 3 V to 32 V, ±1.5 V to 16 V
Temperature Range - Operating 0°C to 70°C
Mounting Through Hole
Case / Package 14-PDIP
Win Source Part Number 019081-LM324N
Family Name LM324
Introduction Date September 01, 1975
ECCN EAR99
Country of Origin Malaysia, Mexico
Halogen Free Not Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Signal Processing, Consumer Electronics, Portable Devices, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian LM324N CAD Model

Description

LM324N from Texas Instruments is a widely recognized quad operational amplifier used in general-purpose analog signal conditioning, sensing, filtering, and control circuits. Engineers often consider devices in this family for cost-sensitive designs that need multiple amplifier channels in a single package for industrial controls, consumer electronics, test fixtures, power monitoring, and embedded analog front ends. Its positioning in the Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps category makes it relevant for designs where flexibility, broad ecosystem familiarity, and straightforward integration matter. Lifecycle status for LM324N is currently listed here as information not available, so design teams should confirm current production status directly with Texas Instruments or authorized channel sources before committing to long-term programs. RoHS compliance information is also not available in the provided data. Procurement and compliance teams should verify the latest datasheet, part-specific ordering suffix, and manufacturer documentation to confirm environmental status and sourcing suitability.
