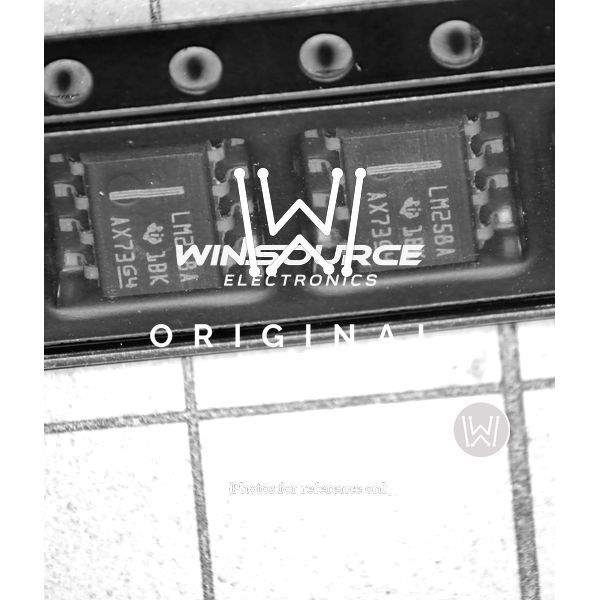

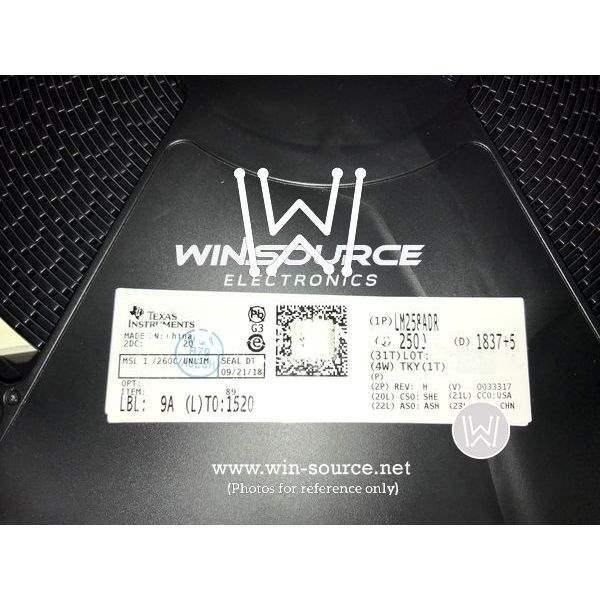

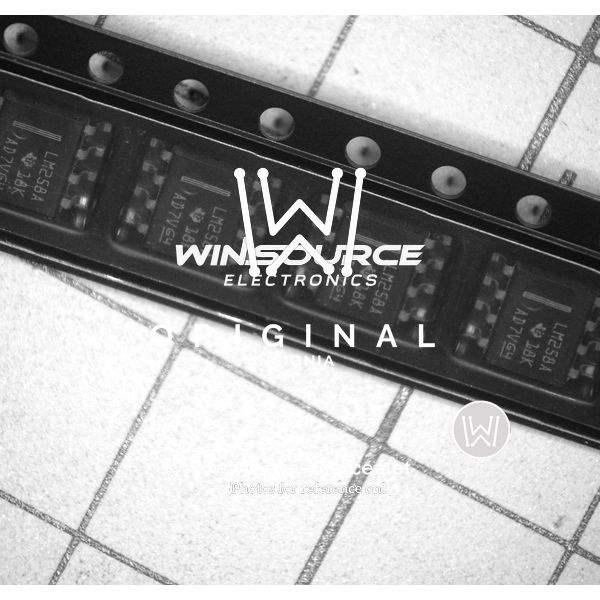

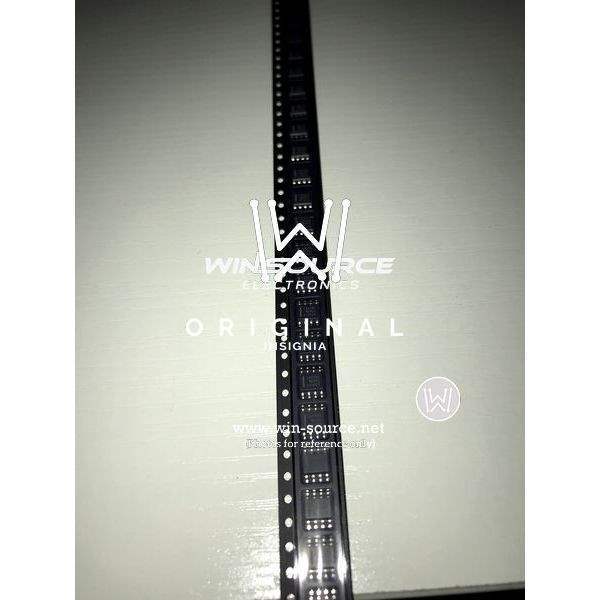

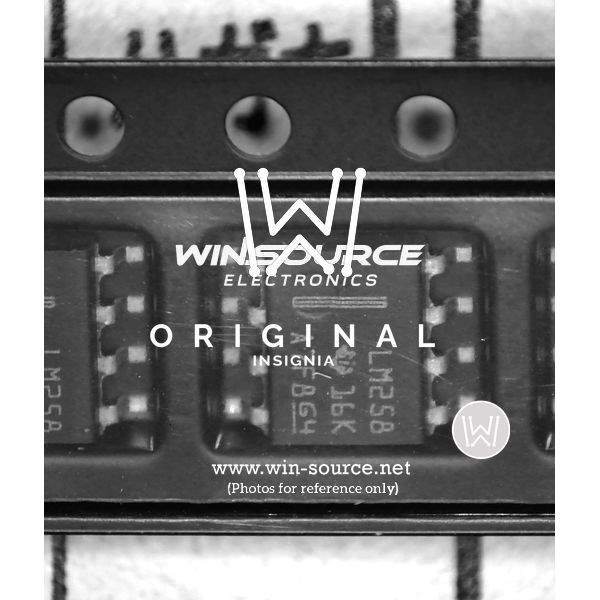

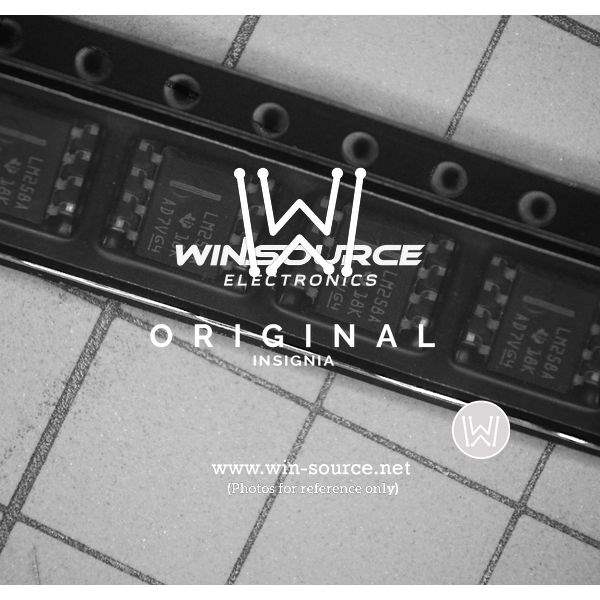

LM258ADR Texas Instruments LM258ADR Real Image LM258ADR real image 2 LM258ADR label picture LM258ADR real image1050 LM258ADR real image1051 LM258ADR Real Image1 LM258ADR Real Image2
LM258ADR Texas Instruments LM258ADR Real Image LM258ADR real image 2 LM258ADR label picture LM258ADR real image1050 LM258ADR real image1051 LM258ADR Real Image1 LM258ADR Real Image2
Same model may have multiple batches, images only for reference.

LM258ADR

Part No LM258ADR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 700KHZ 8SOIC
Datasheet
LM258ADR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 2
Slew Rate 0.3 V/μs
Gain Bandwidth Product (GBP) 700kHz
Current - Input Bias 20nA
Voltage - Input Offset 2mV
Operating Supply Current 1mA
Channel Output Current 30mA
Supply Voltage - Operating 3 V to 32 V, ±1.5 V to 16 V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 018782-LM258ADR
Family Name LM258A
Introduction Date June 01, 2010
ECCN EAR99
Country of Origin Mexico
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Consumer Electronics, Sensing & Instrumentation, Motor Drive & Control, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian LM258ADR CAD Model

Description

The LM258ADR from Texas Instruments is a high-quality, precision dual operational amplifier (Op-Amp) that offers a perfect blend of performance, durability, and reliability.

  • Supply: Single or Split
  • Input: Common mode range extends to negative supply
  • Features: Low input bias and offset parameters
  • Supply Range: 3V to 32V (or ±1.5V to ±16V for dual supplies)
  • Package: 8-pin SOIC package
  • Robustness: Short-circuit protection and thermal overload protection
