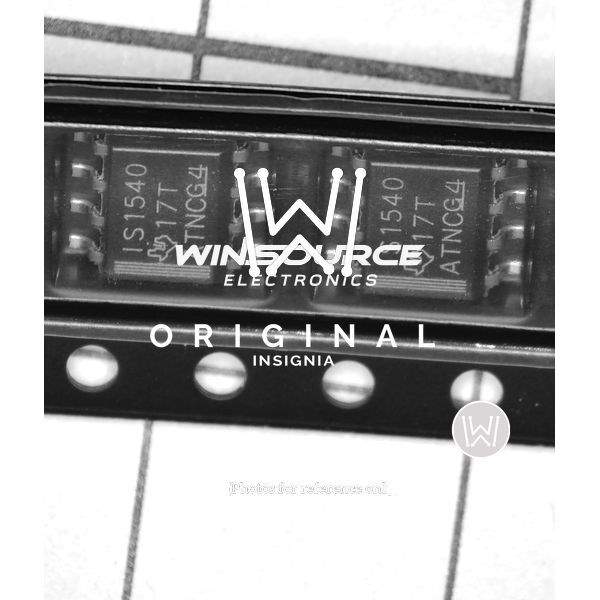

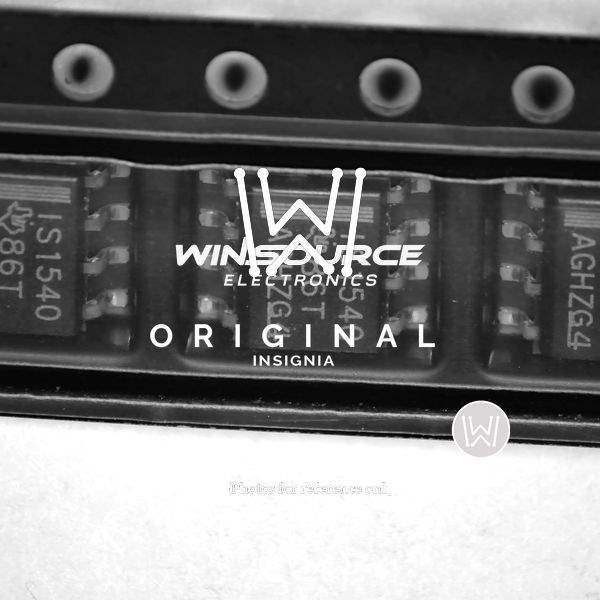

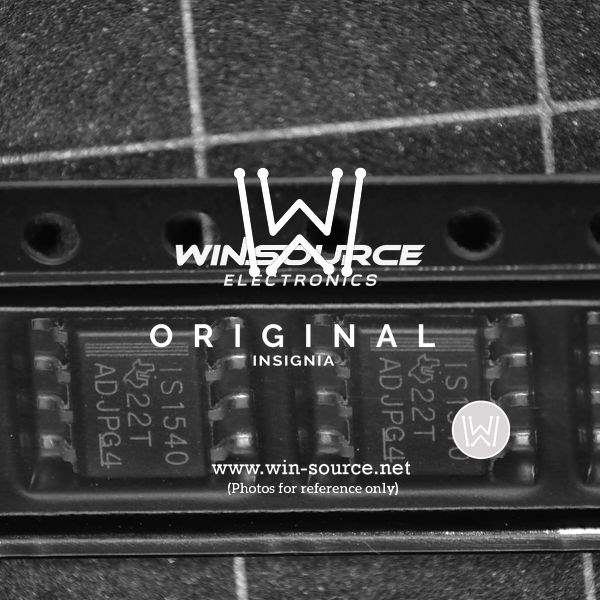

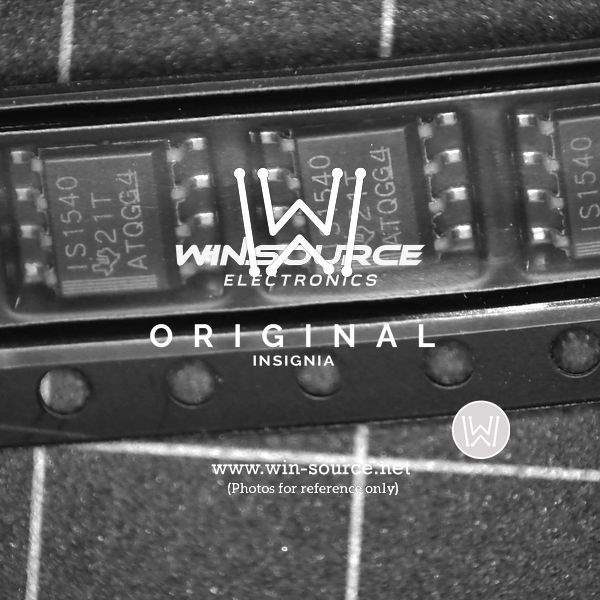

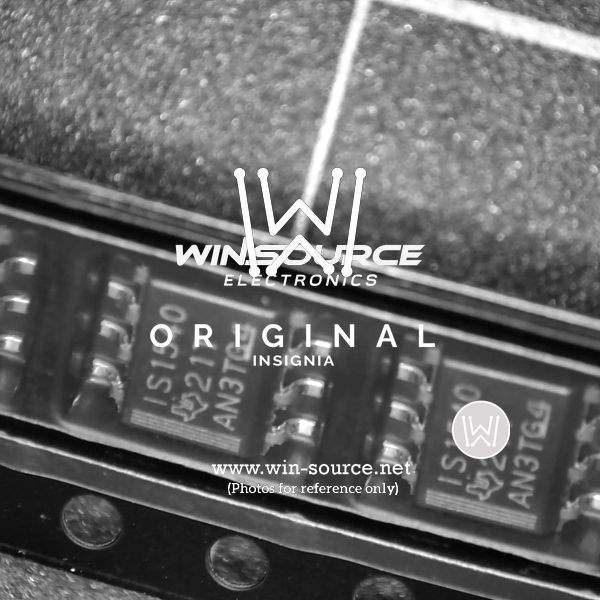

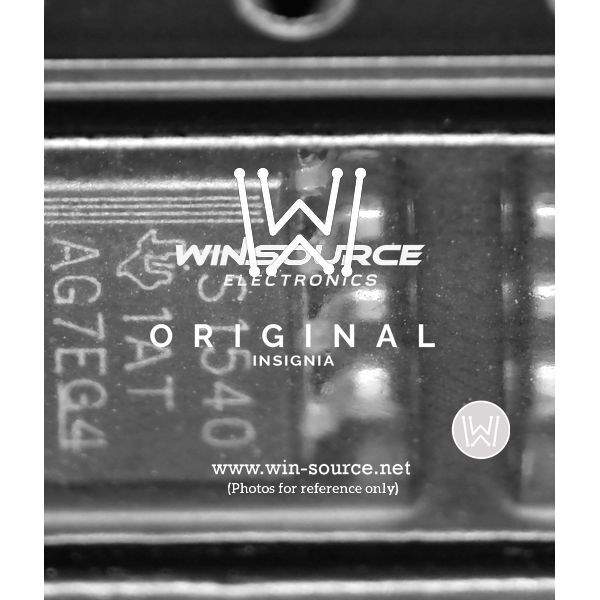

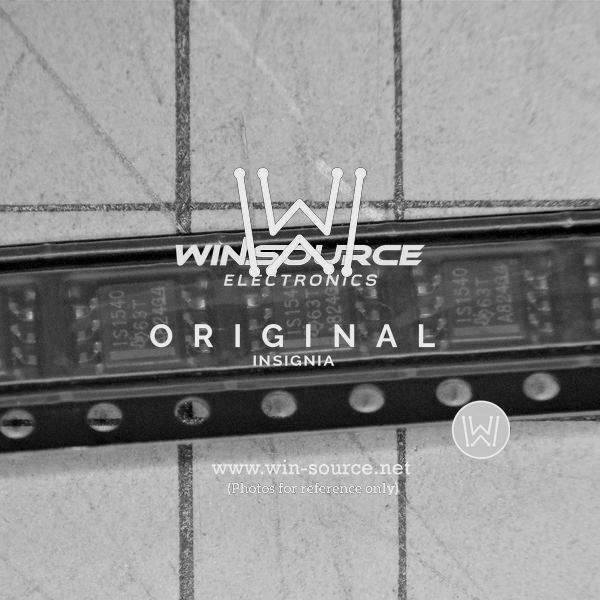

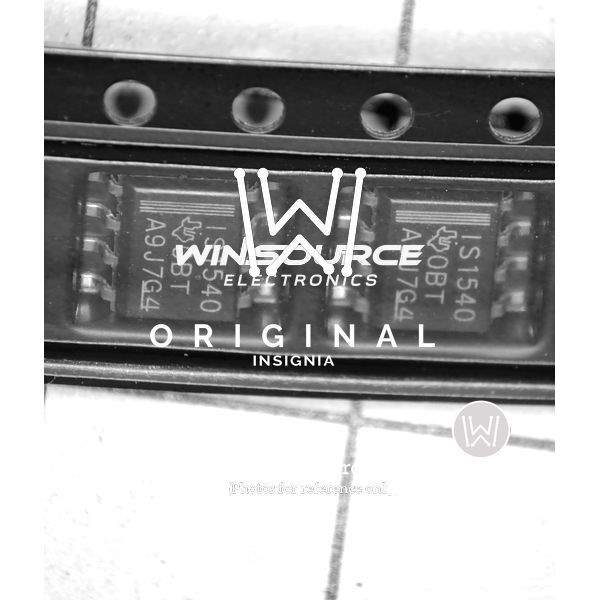

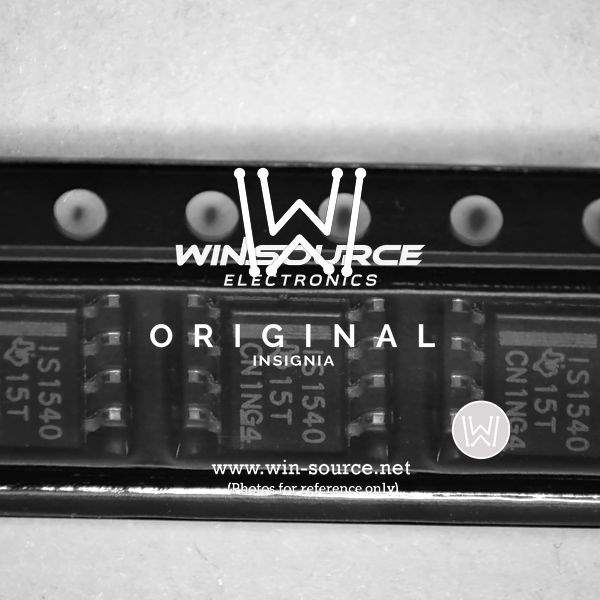

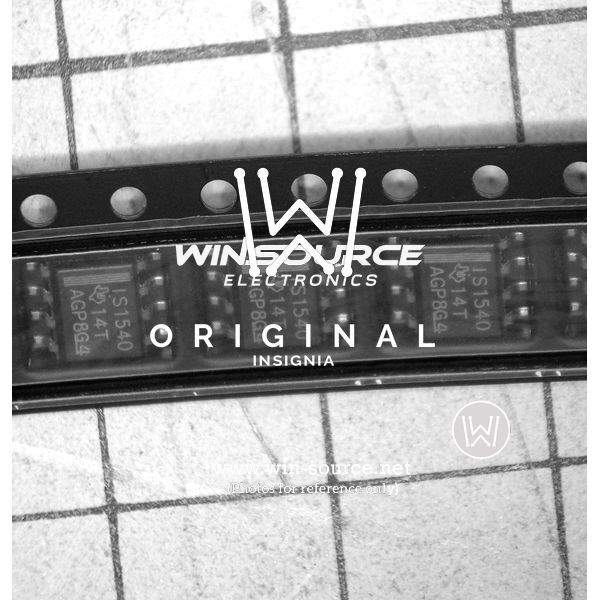

ISO1540DR Texas Instruments ISO1540DR Real Image ISO1540DR real image5166 ISO1540DR real image529 ISO1540DR real image530 ISO1540DR real image531 ISO1540DR real image532 ISO1540DR real image533 ISO1540DR real image534 ISO1540DR real image535 ISO1540DR real image536 ISO1540DR real image537 ISO1540DR real image538 ISO1540DR Real Image1 ISO1540DR Real Image2 ISO1540DR Real Image3 ISO1540DR Real Image4 ISO1540DR Real Image5 ISO1540DR Real Image6 ISO1540DR Real Image7
ISO1540DR Texas Instruments ISO1540DR Real Image ISO1540DR real image5166 ISO1540DR real image529 ISO1540DR real image530 ISO1540DR real image531 ISO1540DR real image532 ISO1540DR real image533 ISO1540DR real image534 ISO1540DR real image535 ISO1540DR real image536 ISO1540DR real image537 ISO1540DR real image538 ISO1540DR Real Image1 ISO1540DR Real Image2 ISO1540DR Real Image3 ISO1540DR Real Image4 ISO1540DR Real Image5 ISO1540DR Real Image6 ISO1540DR Real Image7
Same model may have multiple batches, images only for reference.

ISO1540DR

Part No ISO1540DR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description DGTL ISO 2.5KV 2CH I2C 8SOIC
Datasheet
ISO1540DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type I²C
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/2
Channel Type Bidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 1Mbps
Pulse Width Distortion (Max) 80ns, 21ns
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Case / Package 8-SOIC
Win Source Part Number 018117-ISO1540DR
Family Name ISO1540
Introduction Date August 21, 2012
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ISO1540DR CAD Model

Description

The ISO1540DR is a high-performance, low-power, bidirectional I2C isolator produced by Texas Instruments.

  • Channels: Two-channel
  • Communication: Bidirectional between two I2C buses
  • Isolation Voltage: Up to 2500 Vrms
  • Operating Temperature Range: -40°C to 125°C
  • Feature: Patented noise-filtering technology
  • Supply Voltage Range: 3.0 V to 5.5 V
  • Package: 8-pin SOIC
