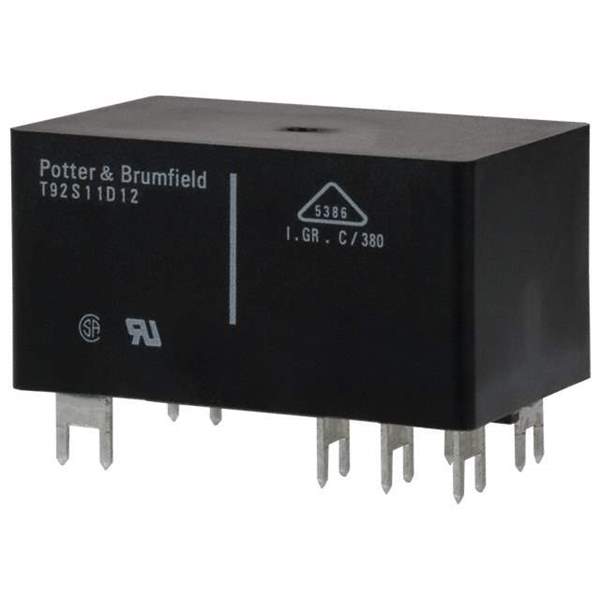

T92S11D12-24 Real Image
Same model may have multiple batches, images only for reference.

T92S11D12-24

Part No T92S11D12-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description 2 pole 30 A, 2 CO or 2 NO contacts | RELAY GEN PURPOSE DPDT 30A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 30A
Switching Voltage 277VAC - Nom
Coil Current 70.8mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 15ms
Release Time 15ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 350 Ohms
Manufacturer Pack Quantity 30
MSL Level Not Applicable
Win Source Part Number 1263535-T92S11D12-24
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Automation & Process Control, HVAC, Commercial
Ultra Librarian 3D Model Ultra Librarian T92S11D12-24 CAD Model

Description

The T92S11D12-24 is a DPDT (2 Form C) relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Coil Voltage: 24VDC
  • Coil Resistance: 350 Ohms
  • Coil Current: 70.8mA
  • Operate Time: 15ms
  • Release Time: 15ms
  • Contact Rating (current): 30A
  • Switching Voltage: 277VAC - Nom
  • Seal Rating: Fully sealed
  • Applications: Ideal for use in industrial, automation & process control, HVAC, and commercial applications.
