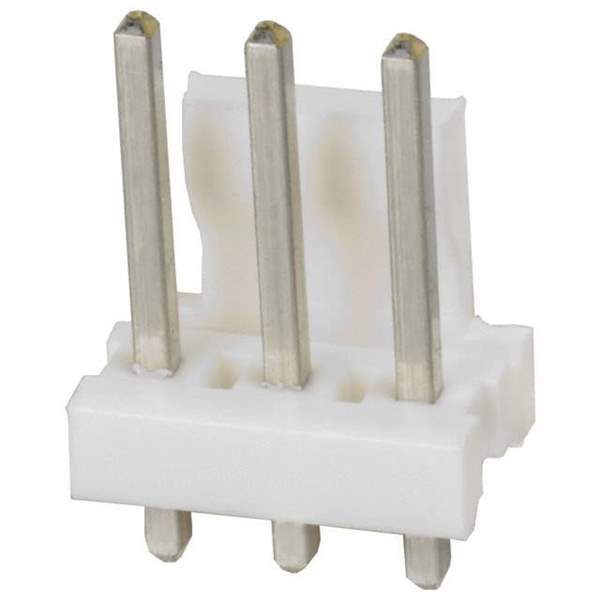

640445-3 Real Image
Same model may have multiple batches, images only for reference.

640445-3

Part No 640445-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3.96MM / MTA-156 HEADER ASSEMBLY, FRICTION LOCK, STRALGHT .045 SQUARE POST, TIN PLATED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809051-640445-3
Ultra Librarian 3D Model Ultra Librarian 640445-3 CAD Model

Description

The 809051-640445-3 header connector from TE Connectivity AMP Connectors is a male pin connector that is perfect for general purpose and industrial applications.

  • Number of Positions: 3
  • Mounting Type: Through Hole
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: 600VAC
  • Material Flammability Rating: UL94 V-0
  • Shrouding: 1 Wall, Shrouded
  • Fastening Type: Friction Lock
  • Insulation Material: Thermoplastic, Glass Filled
  • Pitch-Mating: 0.156" (3.96mm)
  • Contact Length-Mating: 0.400" (10.16mm)
  • Overall Contact Length: 0.650" (16.51mm)
  • Insulation Height: 0.425" (10.80mm)
  • Contact Shape: Square
  • Operating Temperature Range: -55°C to 105°C
  • Packaging: Bulk
  • Manufacturer Pack Quantity: 2,000
