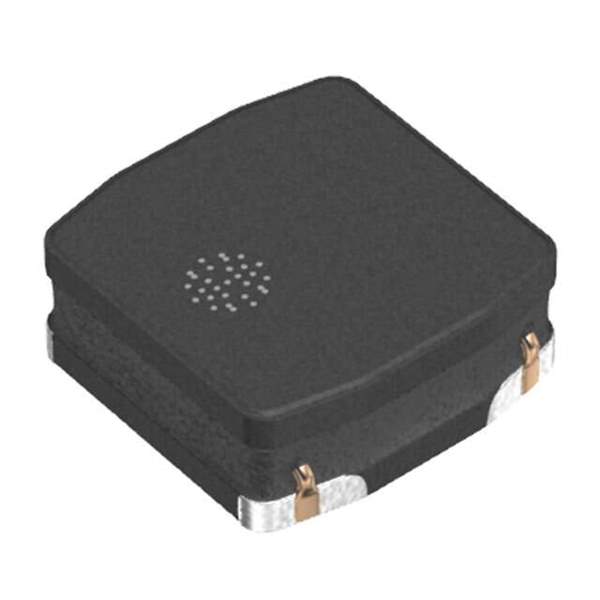

VLS3012HBX-1R5M Real Image
Same model may have multiple batches, images only for reference.

VLS3012HBX-1R5M

Part No VLS3012HBX-1R5M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 1.5UH 4.19A 67 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TDK Corporation
Packaging Reel
Type Wirewound
Material - Core Metal
Inductance 1.5μH
Tolerance ±20%
Current Rating (Amps) 4.19A
Current - Saturation 4.41A
Shielding Shielded
DC Resistance (DCR) 67mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806912-VLS3012HBX-1R5M
Ultra Librarian 3D Model Ultra Librarian VLS3012HBX-1R5M CAD Model

Description

The VLS3012HBX-1R5M from TDK Corporation is a wirewound SMD inductor that is shielded.

  • Inductance: 1.5μH
  • Tolerance: ±20%
  • Material: Metal
  • DC Resistance (DCR): 67mOhm max
  • Current Saturation: 4.41A
  • Temperature Range: -40°C to 105°C
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 4.19A
  • Inductance Frequency-Test: 1MHz
