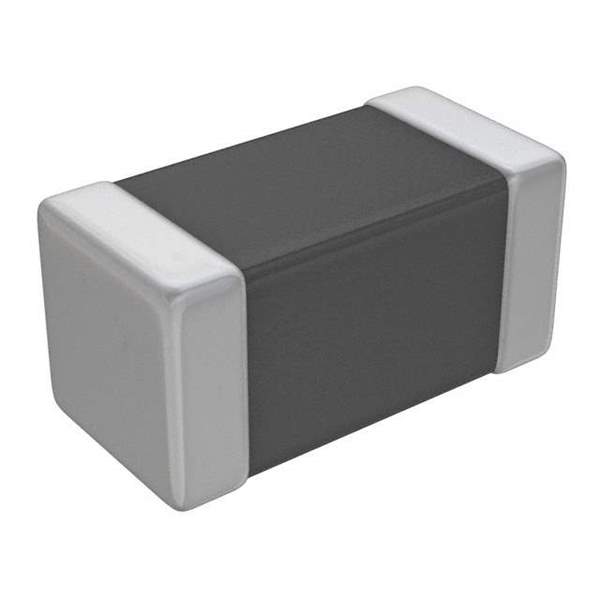

The MPZ1608S221ATA00 is a ferrite chip bead from TDK Corporation that is designed to suppress noise on power lines. It has an impedance of 220 ohms at 100 MHz, a current rating of 2.2 amps, and a DC resistance of 50 milliohms. It is packaged in a 0603 (1608 metric) surface mount package.

Ferrite chip beads are used to suppress noise on power lines in a variety of electronic devices, including cell phones, computers, televisions, and game machines. They work by converting electrical energy into heat, which is then dissipated into the surrounding environment. This helps to reduce the amount of noise that is emitted from the device and can also help to protect sensitive electronic components from noise interference.

The MPZ1608S221ATA00 ferrite chip bead is ideal for use in a wide range of applications, including:

• Power supply filtering
• Noise suppression on signal lines
• EMI/EMC suppression
• Common mode filtering
• Differential mode filtering

It is also well-suited for use in high-current applications, such as those found in automotive electronics and industrial equipment.

Features and Benefits

• High impedance at high frequencies
• Low DC resistance
• High current rating
• Closed magnetic circuit structure eliminates cross-talk
• Compact size and surface mount package
• RoHS compliant

Applications

• Cell phones
• Computers
• Televisions
• Game machines
• Power supplies
• Signal lines
• EMI/EMC suppression
• Common mode filtering
• Differential mode filtering
• Automotive electronics
• Industrial equipment

Installation

The MPZ1608S221ATA00 ferrite chip bead can be installed using standard surface mount soldering techniques. It is important to note that the bead should be installed with the magnetic axis aligned in the same direction as the current flow.

Storage and Handling

The MPZ1608S221ATA00 ferrite chip bead should be stored in a cool, dry place. Avoid exposure to extreme temperatures and humidity.

Typical Electrical Characteristics

Conclusion

The MPZ1608S221ATA00 ferrite chip bead is a high-quality, reliable component that is ideal for use in a wide range of applications. It offers a combination of high impedance at high frequencies, low DC resistance, and high current rating. It is also compact and easy to install.
