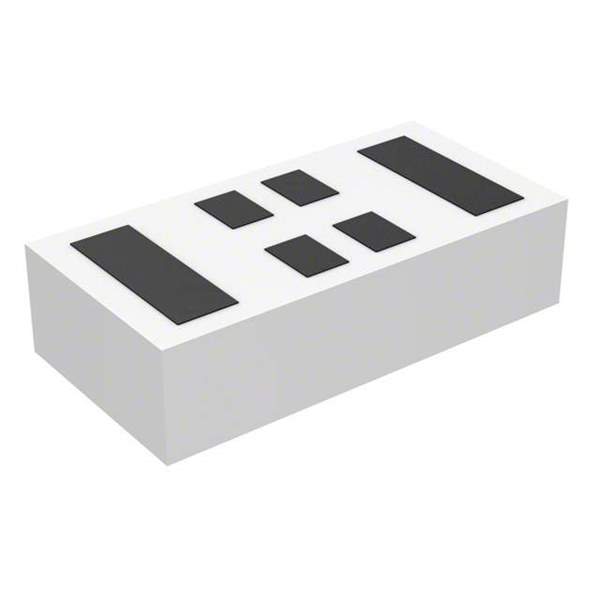

ANT016008LCD2442MA1 Real Image
Same model may have multiple batches, images only for reference.

ANT016008LCD2442MA1

Part No ANT016008LCD2442MA1
Manufacturer TDK Corporation
Catalog RF Antennas
Description Antenna GPS 2484MHz/5850MHz Chip T/R / ANTENNA 2.4GHZ 5GHZ SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Frequency Group UHF (2 GHz to 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz to 2.485GHz, 5.15GHz to 5.85GHz
Antenna Type Chip
Number of Bands 2
VSWR 6.5, 4
Gain 2.27dBi, 5.18dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.016" (0.40mm)
Applications WLAN
Win Source Part Number 100884-ANT016008LCD2442MA1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ANT016008LCD2442MA1
Introduction Date May 31, 2001
Country of Origin United States of America
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian ANT016008LCD2442MA1 CAD Model

Description

ANT016008LCD2442MA1

The ANT016008LCD2442MA1 antenna module offers superior connectivity solutions for a broad range of electronic devices. Engineered for stability and high efficiency, this model is perfect for demanding networks and complex signal requirements.

  • Applications:
    • Wi-Fi routers
    • Wireless communication devices
    • Home automation systems
    • Commercial telemetry
  • Features and Benefits:
    • Enhanced gain and directional performance
    • Robust design for consistent operation
    • Supports wide bandwidth for flexible application use
    • Low interference, providing clearer signal transmission
  • Additional Details:
    • Frequency range: 2442 MHz
    • Compact footprint for minimal spatial impact
    • High durability materials ensure long-lasting performance
