ACH3218-103-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

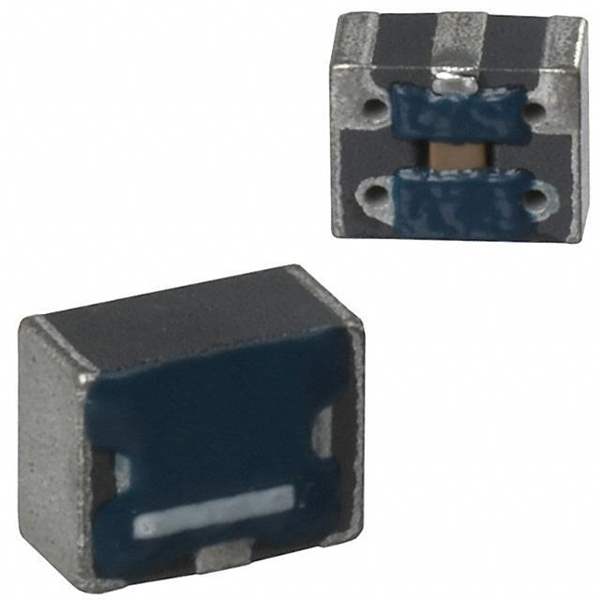

ACH3218-103-TD01

Part No ACH3218-103-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description EMI Filter T-Circuit 25dB 1.5A 20VDC Flat Style SMD T/R / FILTER LC(T) SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 17MHz to 60MHz
Resistance - Channel (Ohms) 0.06
Current 1.5A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.071" Dia x 0.126" L (1.80mm x 3.20mm)
Height 0.108" (2.75mm)
Win Source Part Number 007820-ACH3218-103-TD01
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ACH
Introduction Date August 22, 2003
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian ACH3218-103-TD01 CAD Model

Description

Product Overview

The ACH3218-103-TD01 is a high-performance inductor, tailored for efficient power applications, providing optimal magnetic characteristics for intricate electronic configurations.

Applications

  • Industrial control systems
  • Switching regulators
  • Smart meters
  • LED lighting solutions
  • Automotive electronics

Features and Benefits

  • Excellent thermal stability across applications
  • Compact dimensions for tight design spaces
  • High Q factor at elevated frequencies
  • Durable construction for extended use
  • Meets international safety and environmental standards

The ACH3218-103-TD01 addresses the power and size constraints of modern electronic designs, affording developers enhanced flexibility and performance confirmation.
