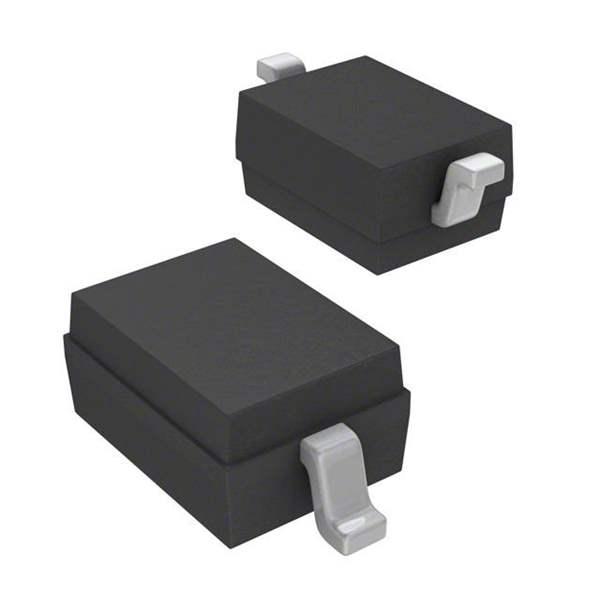

SMV1236-011LF Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

SMV1236-011LF

Part No SMV1236-011LF
Manufacturer Skyworks Solutions Inc.
Catalog Variable Capacitance Diodes (Varicaps, Varactors)
Description DIODE VARACTOR 15V 20MA SOD-323
Datasheet
SMV1236-011LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Capacitance @ Vr, F 5.3pF @ 6V, 50MHz
Capacitance Ratio 3.5
Capacitance Ratio Condition C1/C6
Voltage - Peak Reverse (Max) 15V
Diode Type Single
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-323
Win Source Part Number 029479-SMV1236-011LF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SMV1236-011LF CAD Model

Description

The SMV1236-011LF from Skyworks Solutions Inc. is a surface-mounted diode with a single diode type.

  • Manufacturer: Skyworks Solutions Inc.
  • Mounting: Surface-mounted
  • Diode Type: Single
  • Package: Reel
  • Quantity per Package: 3k pieces
  • Capacitance: 5.3pF @ 6V and 50MHz
  • Voltage-Peak Reverse: 15V
  • Capacitance Ratio: 3.5
  • Capacitance Ratio Condition: C1/C6
  • Supply and Demand Status: Balanced
