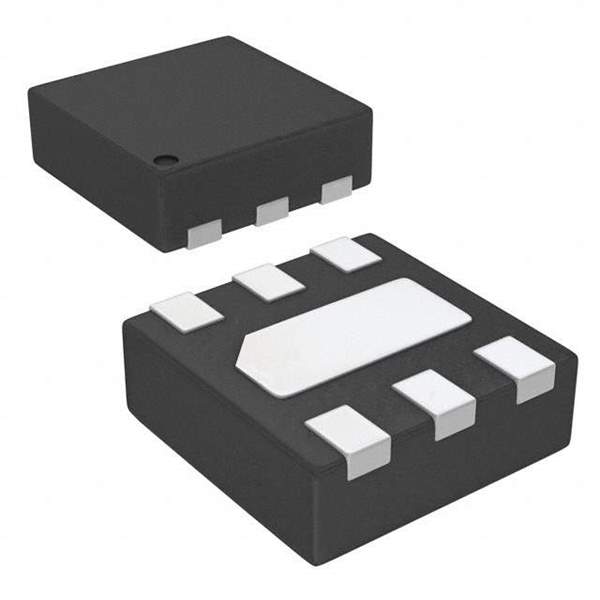

RCLAMP0504PATCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0504PATCT

Part No RCLAMP0504PATCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 18VC SLP1616P6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 21 Weeks
Features 18V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SLP1616P6 (1.6x1.6)
Manufacturer Semtech Corporation
Series RailClamp®
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UFDFN Exposed Pad
Case / Package SLP1616P6 (1.6x1.6)
Family Name RCLAMP0504
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number RCLAMP0504PATCT-ND, RCLAMP0504PATR-ND, RCLAMP0504PATCTCT, RCLAMP0504PA.TCT, RCLAMP0504PADKR, RCLAMP0504PADKR-ND, RCLAMP0504PATCTDKR, RCLAMP0504PATCTTR, RCLAMP0504PATR, RCLAMP0504PACT-ND, RCLAMP0504PACT
Quantity per package 3000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891492-RCLAMP0504PATCT
Ultra Librarian 3D Model Ultra Librarian RCLAMP0504PATCT CAD Model

Description

The Semtech Corporation RCLAMP0504PATCT is a surface-mounted TVS diode IC that comes in a 6-UFDFN exposed pad package.

  • Series: RailClamp
  • Clamping Voltage: 18V
  • Peak Pulse Current: 6A (8/20μs)
  • Temperature Range: -55°C ~ 125°C (TJ)
  • ECCN: Not compliant
  • Supply and Demand Status: Limited
  • Package: Reel
  • Quantity per Package: 3000
  • Cross-reference: RCLAMP0504PATCT-ND, RCLAMP0504PATR-ND, RCLAMP0504PATCTCT, RCLAMP0504PA.TCT, RCLAMP0504PADKR, RCLAMP0504PADKR-ND, RCLAMP0504PATCTDKR, RCLAMP0504PATCTTR, RCLAMP0504PATR, and RCLAMP0504PACT-ND
