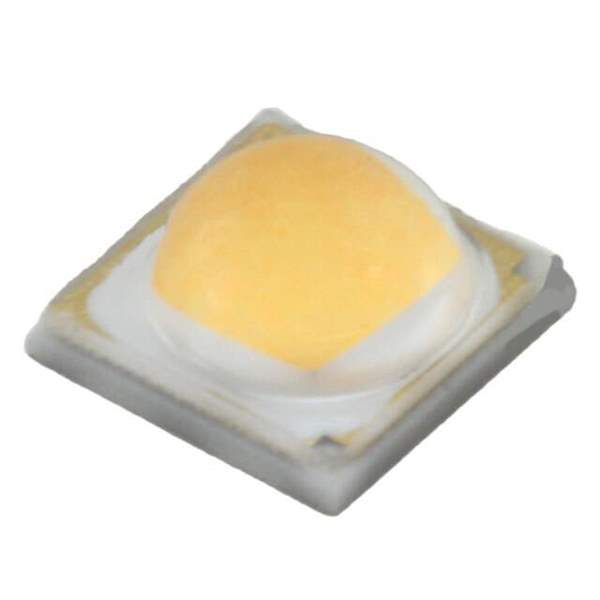

SPHWH2L3D30CD4RTP3 Real Image
Same model may have multiple batches, images only for reference.

SPHWH2L3D30CD4RTP3

Part No SPHWH2L3D30CD4RTP3
Manufacturer Samsung
Catalog LED Lighting - White
Description LED LH351B COOL WHITE 5000K SMD / LED Lighting series White, Cool 5000K 2.8V 350mA 120° 1414 (3535 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Samsung Semiconductor, Inc.
Series LH351B
Color White, Cool
CCT (K) 5000K
Flux @ 85°C, Current - Test 175lm (160lm ~ 190lm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.8V
Lumens/Watt @ Current - Test 179 lm/W
CRI (Color Rendering Index) 70
Current - Max 1.5A
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 1414 (3535 Metric)
Supplier Device Package 3535
Dimension 0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max) 0.081" (2.06mm)
Thermal Resistance of Package 4°C/W
Base Product Number SPHWH2
Other Names 1510-1779,1510-1779-2,1510-1779-1,1510-1779-6,1510-1779
Standard Package 1,000
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240140-SPHWH2L3D30CD4RTP3
Ultra Librarian 3D Model Ultra Librarian SPHWH2L3D30CD4RTP3 CAD Model

Description

The Samsung LH351B LED is a high-performance white LED that is suitable for use in LED lighting applications.

  • Viewing Angle: 120 degrees
  • Forward Voltage: 2.8V
  • Current Rating: 1.5A
  • Thermal Resistance: 4 degrees Celsius per watt
  • Color Temperature: 5000K
  • Color Rendering Index: 70
  • Flux: 175lm @ 85 degrees Celsius and a current of 350mA
  • Package: 1414 (3535 metric)
  • Mounting Applications: SMD (SMT) mounting applications
  • Lumens per Watt Rating: 179 lm/W
