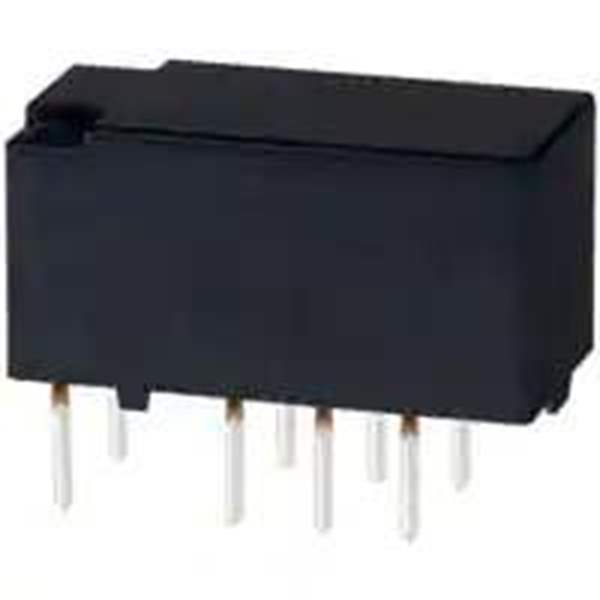

TX2-9V Real Image
Same model may have multiple batches, images only for reference.

TX2-9V

Part No TX2-9V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 9VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr Panasonic
Series TX
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 15.5 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 6.75 VDC
Must Release Voltage 0.9 VDC
Operate Time 4 ms
Release Time 4 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 579 Ohms
Base Product Number TX2-9
Standard Package 40 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 848636-TX2-9V
Ultra Librarian 3D Model Ultra Librarian TX2-9V CAD Model

Description

The Panasonic 848636-TX2-9V is a DPDT (2 Form C) telecom relay.

  • Relay Type: Telecom Relay
  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 9VDC
  • Coil Resistance: 579 Ohms
  • Contact Rating: 2A
  • Switching Voltage: 220VDC (Max)
  • Operate Time: 4ms
  • Release Time: 4ms
  • Series: TX
  • Termination Style: PC Pin
  • Mounting Type: Through-Hole
  • Sealed: Fully Sealed
  • Temperature Range: -40°C to 85°C
  • Package: Tube
  • Standard Package Quantity: 40 pcs
  • Product Status: Active
  • Manufacturer: Panasonic
