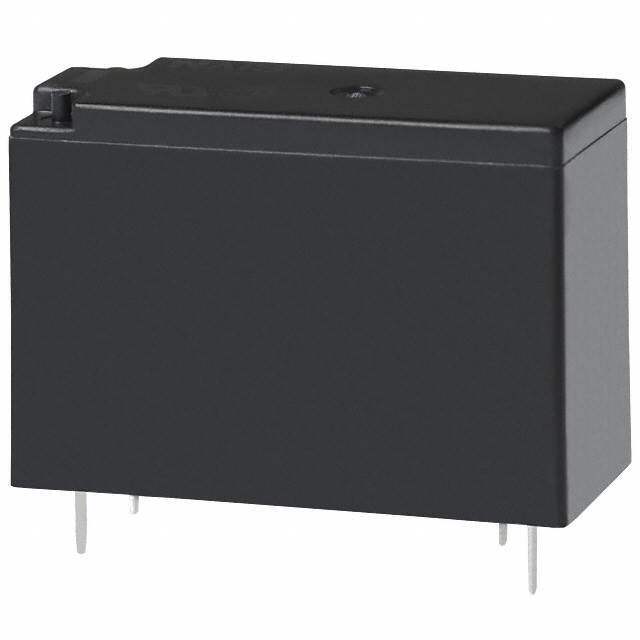

JW2SN-DC12V Real Image JW2SN-DC12V label picture
JW2SN-DC12V Real Image JW2SN-DC12V label picture
Same model may have multiple batches, images only for reference.

JW2SN-DC12V

Part No JW2SN-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 5A 12V
Datasheet
JW2SN-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 270 Ohms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 66458-JW2SN-DC12V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JW2SN-DC12V CAD Model

Description

The JW2SN-DC12V is a high popularity, balanced supply and demand state Panasonic Electric Works relay.

  • Contact Form: DPDT (2 Form C)
  • Coil Voltage: 12VDC
  • Contact Rating: 5A
  • Switching Voltage: Up to 250VAC or 30VDC
  • Operating Temperature Range: -40°C to 60°C
