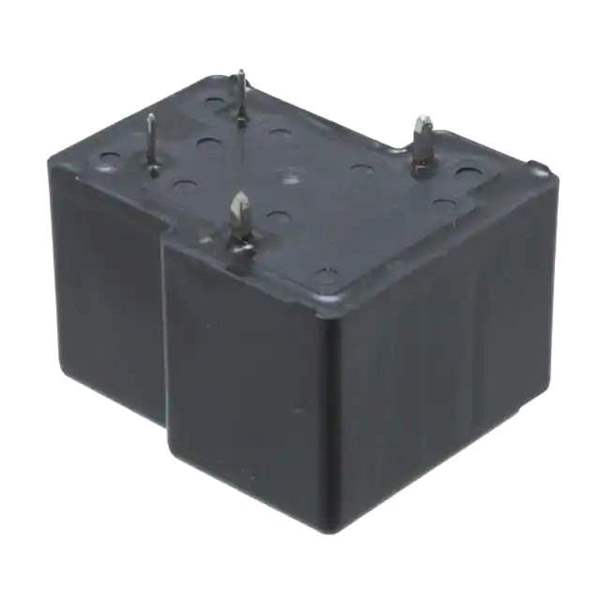

JTN1AS-PA-F-DC24V Real Image
Same model may have multiple batches, images only for reference.

JTN1AS-PA-F-DC24V

Part No JTN1AS-PA-F-DC24V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 720 Ohms
Base Product Number JTN1AS
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 848525-JTN1AS-PA-F-DC24V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-PA-F-DC24V CAD Model

Description

The JT-N series is a power relay designed for high current applications. This SPST-NO (1 Form A) relay has a contact rating of 30A and a switching voltage of 277VAC.

  • Contact Arrangement: SPST-NO (1 Form A)
  • Contact Rating: 30A
  • Switching Voltage: 277VAC
  • Coil Voltage: 24VDC
  • Coil Resistance: 720 Ohms
  • Features: Sealed fully
  • Temperature Range: -55°C to 85°C
  • Mounting Type: Through hole
  • Package: 50 pcs
  • Product Line: Panasonic JTN1AS
  • Status: Obsolete
