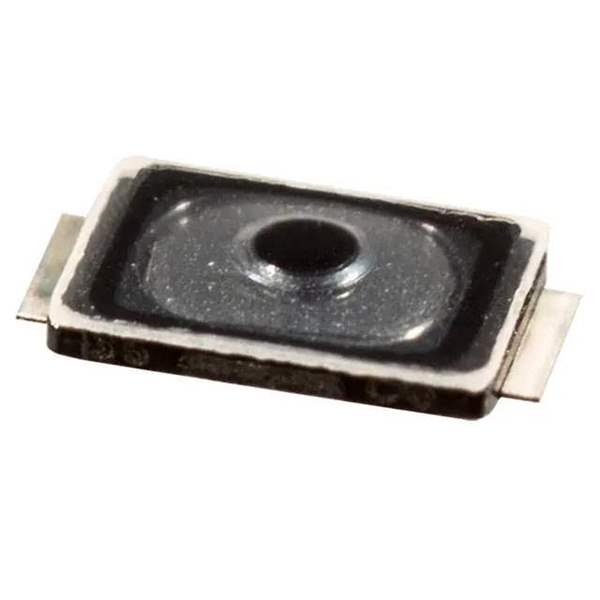

EVP-AWBD2A Real Image
Same model may have multiple batches, images only for reference.

EVP-AWBD2A

Part No EVP-AWBD2A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVP-AWBD2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVPAW
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.13mm
Mechanical Life 500,000 Cycles
Base Product Number EVP-AW
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 851176-EVP-AWBD2A
Ultra Librarian 3D Model Ultra Librarian EVP-AWBD2A CAD Model

Description

The EVPAW series from Panasonic offers reliable tactile switches for different electronic devices.

  • Product Name: EVP-AWBD2A
  • Manufacturer: Panasonic
  • Mounting Type: Surface Mount
  • Termination Style: SMD (SMT) Tab
  • Configuration: SPST-NO
  • Actuator Travel: 0.13mm
  • Operating Force: 160gf
  • Contact Rating: 0.02A @ 15VDC
  • Outline: 3.00mm x 2.00mm
  • Illumination: Non-Illuminated
  • Ingress Protection: IP67
  • Package: Tape & Reel
  • Standard Quantity: 10,000 pcs
