ON Semiconductor MBRM130LT3G Schottky Power Rectifier

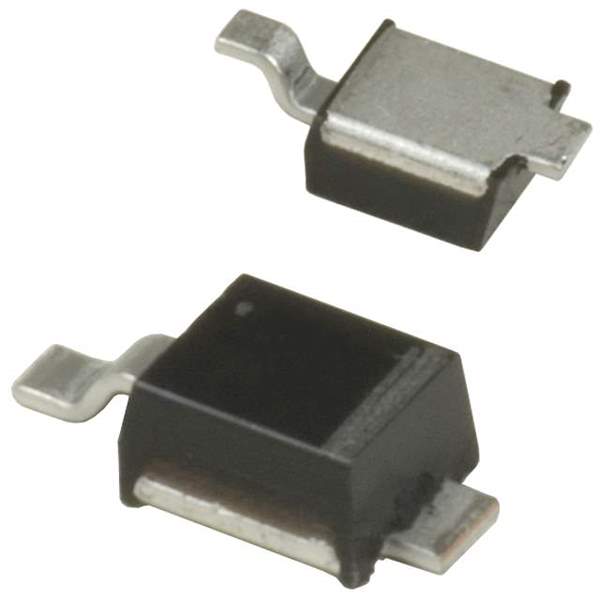

The MBRM130LT3G from ON Semiconductor is a robust Schottky power rectifier designed for high-efficiency power management applications. This device is a surface-mount component that comes in a compact, low-profile DO-216AA package, making it ideal for space-constrained applications. The rectifier is characterized by its low forward voltage drop and high surge capability, which are critical features for power supply designs.

With a maximum repetitive peak reverse voltage (V_RRM) of 30V, the MBRM130LT3G offers excellent voltage handling capability for a wide range of applications. The average rectified forward current (I_O) of 1A ensures that the device can handle moderate levels of current without overheating or failing. The low forward voltage drop (V_F) of this Schottky diode, typically at 0.385V at 1A, contributes to reduced power loss and improved system efficiency, which is especially beneficial in low voltage, high-frequency inverters, free-wheeling, and polarity protection applications.

The MBRM130LT3G also features a fast reverse recovery time (t_rr), which minimizes switching losses and enhances the performance of the circuit in which it is used. The device's ability to handle high surge currents (I_FSM) makes it reliable in applications that may experience unexpected overcurrent conditions.

Constructed with ON Semiconductor's patented Schottky barrier technology, this rectifier offers superior thermal performance and a robust design. Its lead-free finish and RoHS compliance ensure that the MBRM130LT3G meets current environmental standards, making it a suitable choice for eco-conscious designs.

Applications for the MBRM130LT3G are diverse and include switch-mode power supplies (SMPS), DC-DC converters, reverse battery protection, and load switching. Its small footprint and power handling capabilities make it an excellent choice for portable devices, telecommunications, and industrial equipment. Designers looking for a reliable and efficient Schottky rectifier will find the MBRM130LT3G from ON Semiconductor to be an exceptional component for their power management solutions.
