The ON Semiconductor BF199 is a high-performance NPN bipolar RF (Radio Frequency) transistor designed for use in a wide range of applications, including VHF and UHF communications. This versatile component is well-suited for applications that require low noise figures and high gain at high frequencies.

Key Features:

• Frequency Range: The BF199 is optimized for VHF and UHF frequencies, which makes it ideal for applications in the 100 MHz to 800 MHz range.
• High Gain: Exhibiting high gain at high frequencies, this transistor is capable of amplifying weak signals without significant loss of quality.
• Low Noise Figure: The low noise figure of the BF199 ensures that signal quality is maintained, particularly important in communication systems where clarity is paramount.
• Power Dissipation: With a power dissipation of 625 mW, the BF199 can handle moderate power levels, making it suitable for a variety of RF applications.
• Collector-Emitter Voltage: It supports a collector-emitter voltage (Vceo) of 25V, which provides a good balance between performance and reliability.
• Collector Current: The device can sustain a continuous collector current (Ic) of up to 30 mA, allowing for a wide range of operational conditions.

Applications:

The BF199 transistor is commonly used in applications such as:

• RF amplifiers
• Local oscillators in television and radio receivers
• Mixers and converters in communication equipment
• IF (Intermediate Frequency) stages

Package and Quality:

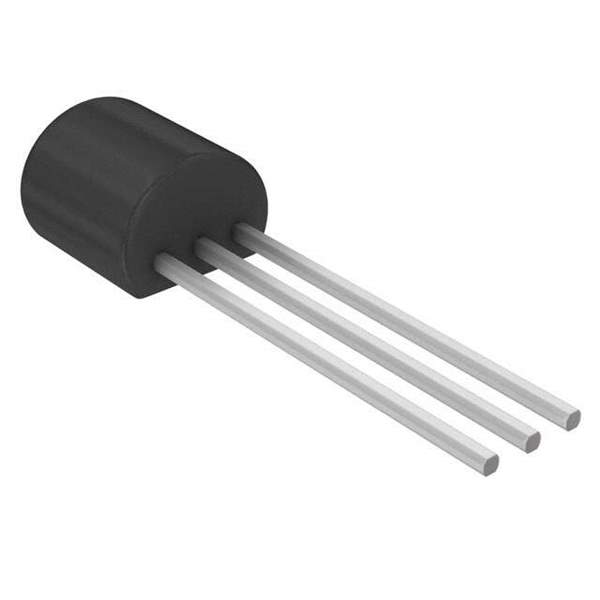

The BF199 is offered in a TO-92 package, which is a widely used configuration for transistors due to its convenient size for PCB (Printed Circuit Board) mounting and good thermal performance. ON Semiconductor ensures that each BF199 transistor meets rigorous quality standards, providing reliability and performance for professional, industrial, and hobbyist applications alike.
