The BAS20LT1G is a high-performance switching diode designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This diode is engineered to offer fast switching speeds, low leakage current, and high voltage capability, making it an ideal choice for high-efficiency applications.

Key Features

• High Voltage Tolerance: With a repetitive peak reverse voltage (V_RRM) of 200V, the BAS20LT1G is suitable for high-voltage applications, providing reliable performance in demanding environments.
• Fast Switching Speed: The diode features a fast reverse recovery time, ensuring quick transitions between conducting and non-conducting states, which is crucial for high-speed switching applications.
• Low Leakage Current: It exhibits a low leakage current, minimizing power loss and enhancing the overall efficiency of the circuit in which it is used.

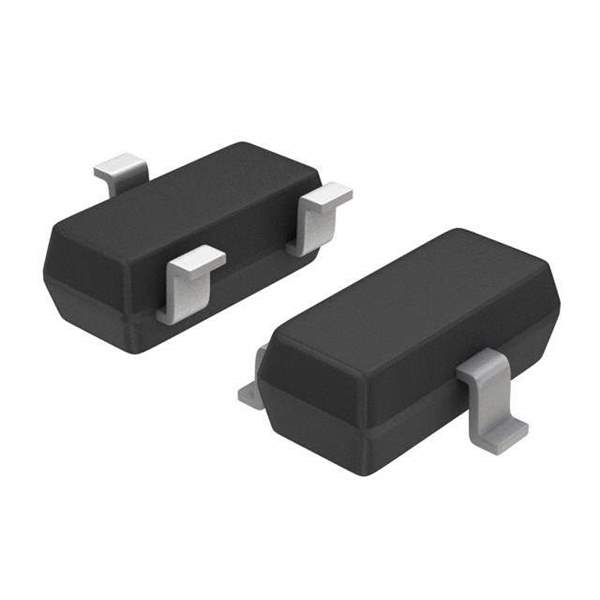

• SOT-23 Package: This diode is housed in a small SOT-23 package, making it an excellent choice for space-constrained applications. The compact footprint allows for high-density PCB layouts.
• RoHS Compliant: The BAS20LT1G is fully RoHS compliant, ensuring that it meets the latest environmental standards and restrictions on hazardous substances.

Applications

The BAS20LT1G is versatile and can be used in a variety of applications. Some of the common applications include:

• Switching power supplies
• Converters
• High-speed logic circuits
• Power management devices
• Reverse polarity protection

Quality and Reliability

ON Semiconductor is known for its commitment to quality and reliability, and the BAS20LT1G is no exception. It is designed to meet stringent industry standards, ensuring long-term reliability and performance in commercial, industrial, and automotive applications. Whether you are designing power converters or managing power in portable devices, the BAS20LT1G provides the efficiency and reliability you need to power your innovations.
