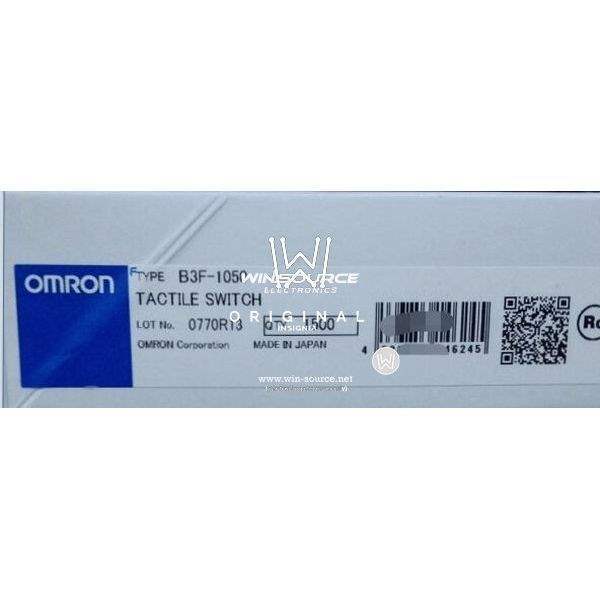

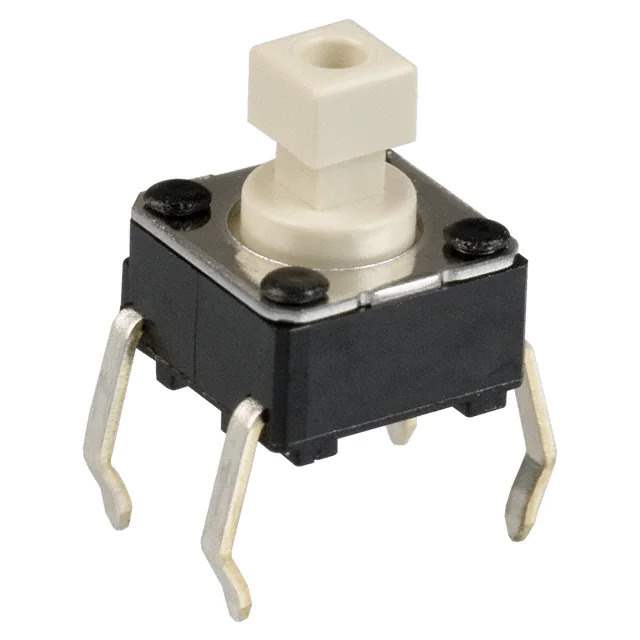

B3F-1050 Real Image B3F-1050 label picture
B3F-1050 Real Image B3F-1050 label picture
Same model may have multiple batches, images only for reference.

B3F-1050

Part No B3F-1050
Manufacturer Omron
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Datasheet
B3F-1050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Omron
Series B3F
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -25°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 1,000,000 Cycles
Base Product Number B3F
Standard Package 1,500 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 568057-B3F-1050
Ultra Librarian 3D Model Ultra Librarian B3F-1050 CAD Model

Description

The B3F-1050 is a tactile switch from Omron's B3F series. It features a SPST-NO circuit with an operating force of 100gf and a switch travel of 0.25mm.

  • Series: B3F
  • Circuit: SPST-NO
  • Operating Force: 100gf
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 24VDC
  • Termination Style: PC Pin
  • Standard Package Quantity: 1,500 pcs
  • Manufacturer: Omron
