Product Overview: 74HC238D,653

The 74HC238D,653 is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). Manufactured by NXP, a renowned leader in the semiconductor industry, this decoder/demultiplexer is part of the 74HC series, known for their robust performance and versatility in a wide range of electronic applications.

Key Features

• 3-to-8 Line Decoder/Demultiplexer: The 74HC238D,653 is designed to convert three binary input signals to eight mutually exclusive outputs. This feature is particularly useful in applications where a single data line needs to be routed to multiple output lines.
• High-Speed Operation: This device is capable of high-speed operation, making it suitable for systems that require fast data processing and precise timing.
• Low Power Consumption: As part of the 74HC family, this product benefits from low power consumption, which is essential for battery-operated and power-sensitive designs.
• Wide Operating Voltage Range: The 74HC238D,653 can operate within a voltage range of 2.0 to 6.0 V, providing flexibility in various circuit designs and compatibility with other logic families.
• Output Drive Capability: The device can drive up to 15 LSTTL loads, ensuring sufficient current to drive connected components.
• ESD Protection: It includes built-in electrostatic discharge protection, which safeguards the device from the common static electricity damage.

Applications

The 74HC238D,653 is widely used in digital systems for its decoding capabilities. Applications include:

• Memory address decoding
• Data routing and signal distribution
• Control signal generation for multiple peripherals
• Function selection in microprocessor systems

Package and Quality Assurance

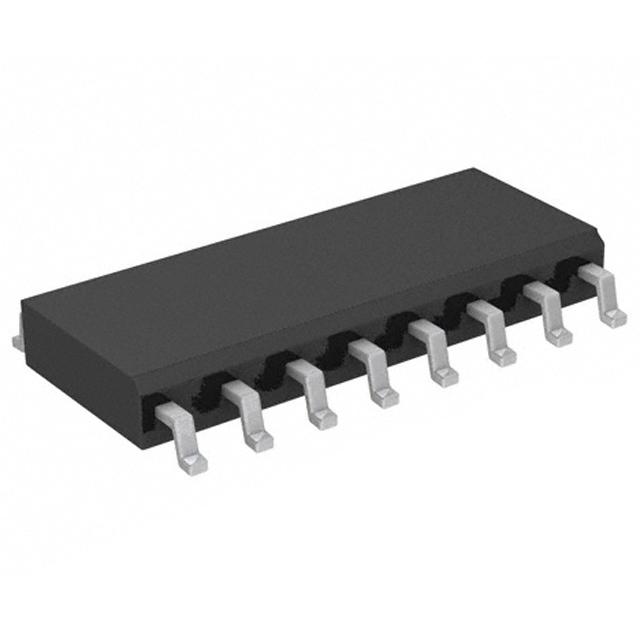

The 74HC238D,653 comes in a SO-16 package, which is a small-outline package with 16 leads. The device's compact footprint allows for efficient use of board space in dense circuit designs. NXP's commitment to quality ensures that each unit meets rigorous industry standards for performance and reliability.
