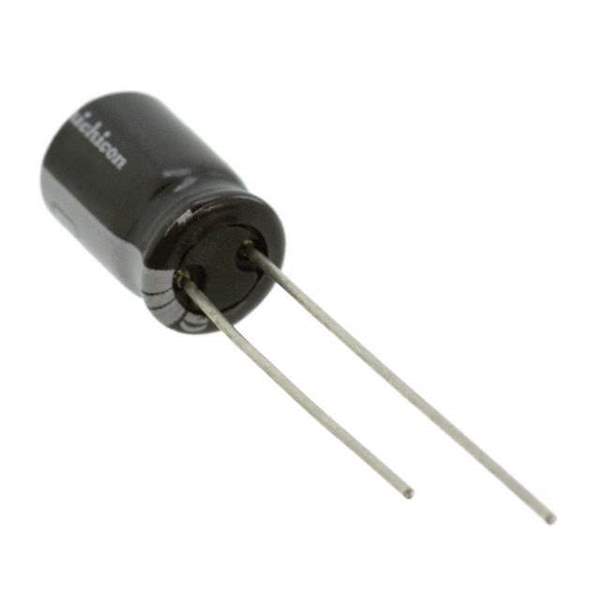

UVY1V221MPD Real Image
Same model may have multiple batches, images only for reference.

UVY1V221MPD

Part No UVY1V221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 35V RADIAL / 220 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 250 mA @ 120 Hz
Ripple Current @ High Frequency 375 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 3,000
Win Source Part Number 1330038-UVY1V221MPD
Ultra Librarian 3D Model Ultra Librarian UVY1V221MPD CAD Model

Description

The Nichicon aluminum electrolytic capacitor is designed for general-purpose applications.

  • Manufacturer: Nichicon
  • Capacitance: 220 µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Ripple Current: 250 mA @ 120 Hz and 375 mA @ 10 kHz
  • ESR: Not specified
  • Lifetime: 1000 Hrs @ 105°C
  • Polarization: Polarized
  • Mounting Type: Through Hole
  • Package/Case: Radial Can
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Height (Seated): 0.453" (11.50mm)
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • HTSUS: 8532.22.0020
